| Part Number | 1509-4 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |

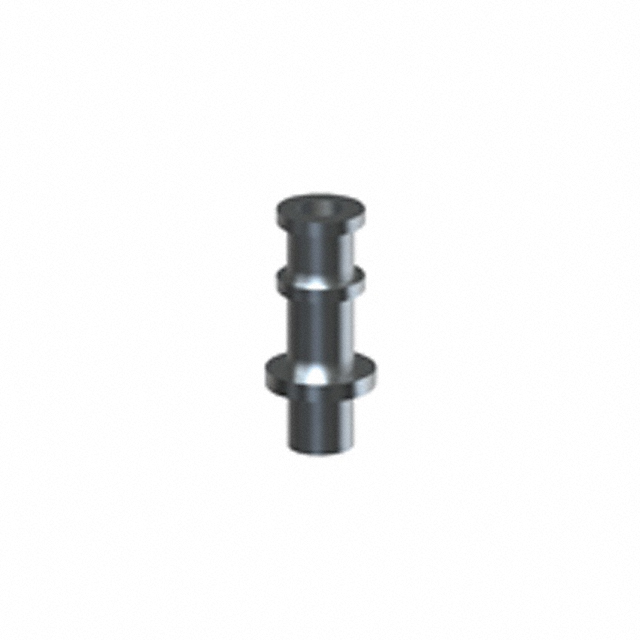

| Description | TERM TURRET HOLLOW L=7.92MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $0.211 | $0.198 | $0.159 | $0.152 | $0.139 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.132 | $0.109 | $0.099 | $0.096 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1509-4 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET HOLLOW L=7.92MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 220435 pcs | Data sheet | Turret Terminals1509-1,2,3,4 Drawing |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | Single End, Hollow | Staking Side OD | 0.112" (2.84mm) |
| Staking Side ID | - | Series | - |
| Other Names | 1509-4K 1509-4K-ND 36-1509-4 |
Number of Turrets | Double |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.116" (2.95mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.483" (12.27mm) |
| Length - Below Flange | 0.171" (4.34mm) | Length - Above Board | 0.312" (7.92mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.150" (3.81mm) | Detailed Description | Terminal Turret Connector Single End, Hollow 0.312" (7.92mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.125" (3.18mm) |
