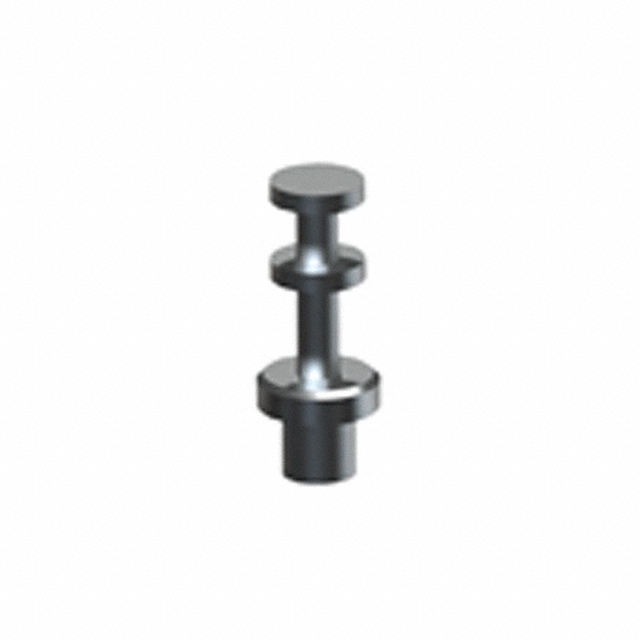

1503-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1503-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1503-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1503-4 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | TERM TURRET SINGLE L=9.14MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.147 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1503-4 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=9.14MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 154739 pcs | Data sheet | Turret Terminals1503-1,2,3,4 Drawing |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | Single End | Staking Side OD | 0.112" (2.84mm) |
| Staking Side ID | - | Series | - |
| Other Names | 1503-4K 1503-4K-ND 36-1503-4 |
Number of Turrets | Double |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.116" (2.95mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | - |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.532" (13.51mm) |
| Length - Below Flange | 0.172" (4.37mm) | Length - Above Board | 0.360" (9.14mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | - |
| Insulation | Non-Insulated | Flange Diameter | 0.187" (4.75mm) |
| Diameter - Turret Head | 0.145" (3.68mm) | Detailed Description | Terminal Turret Connector Single End 0.360" (9.14mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.125" (3.18mm) |
