Home > Products > Connectors, Interconnects > Terminals - PC Pin Receptacles, Socket Connectors > 1470

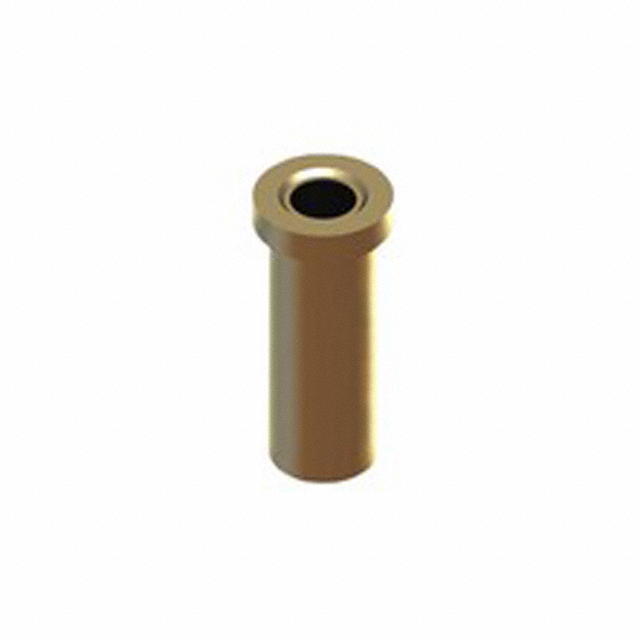

1470

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1470 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	1470
Manufacturer	Keystone Electronics Corp.
Description	CONN PIN RCPT .015-.025 SOLDER
Lead Free Status / RoHS Status	Lead free / RoHS non-compliant

~~In Stock~~ 300539 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$0.07

Product parameter
Data sheet

Product parameter

Part Number	1470	Manufacturer	Keystone Electronics Corp.
Description	CONN PIN RCPT .015-.025 SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS non-compliant
Quantity Available	300539 pcs	Data sheet	Micro Jacks 1470 Drawing
Category	Connectors, Interconnects	Termination	Solder
Tail Type	No Tail	Tail Diameter	-
Socket Depth	0.142" (3.61mm)	Series	-
Pin Hole Diameter	-	Packaging	Bulk
Other Names	1470K 1470K-ND 36-1470	Operating Temperature	-
Mounting Hole Diameter	0.057" (1.45mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	6 Weeks	Length - Overall	0.161" (4.09mm)
Lead Free Status / RoHS Status	Lead free / RoHS non-compliant	Insertion Force	-
Flange Diameter	0.072" (1.83mm)	Features	-
Detailed Description	Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Solder	Contact Material	Beryllium Copper
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Board Thickness	-	Accepts Square Pin Size	-
Accepts Pin Diameter	0.015" ~ 0.025" (0.38mm ~ 0.64mm)
