1436

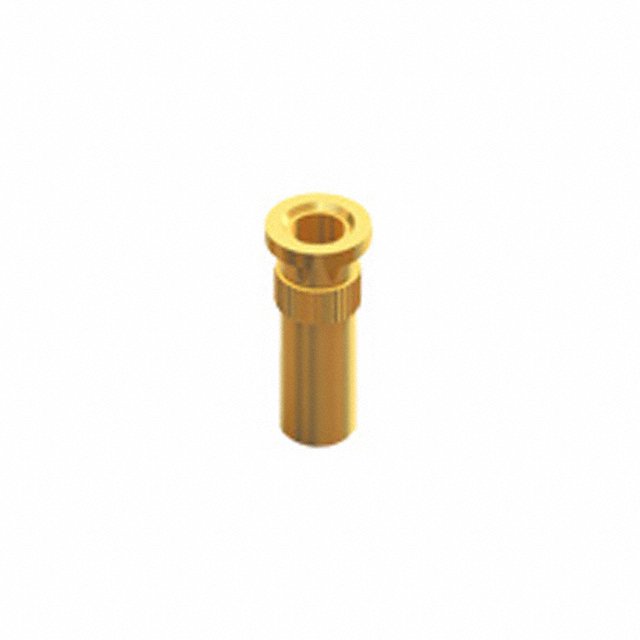

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1436 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1436 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1436 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .022-.034 KNURL |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.208 | $0.154 | $0.123 | $0.118 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.108 | $0.086 | $0.077 | $0.074 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1436 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .022-.034 KNURL | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 256163 pcs | Data sheet | 1436 DrawingMicro Jacks |
| Category | Connectors, Interconnects | Termination | Press-Fit, Knurled |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | 0.170" (4.32mm) | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 1436K 1436K-ND 36-1436 |
Operating Temperature | - |
| Mounting Hole Diameter | 0.067" (1.70mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.200" (5.08mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | 0.086" (2.18mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.022" ~ 0.034" (0.56mm ~ 0.86mm) No Tail Press-Fit, Knurled | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin-Lead |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.022" ~ 0.034" (0.56mm ~ 0.86mm) |
