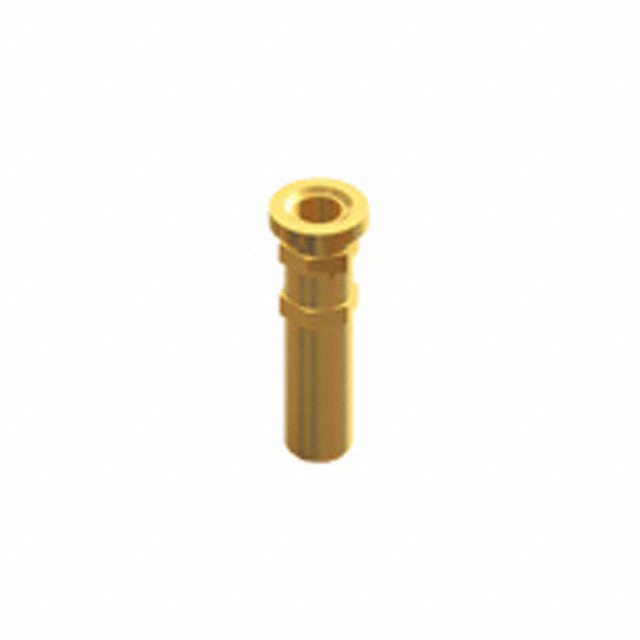

1432-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1432-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1432-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1432-3 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .015-.021 PRESSFIT |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.15 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1432-3 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .015-.021 PRESSFIT | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 132712 pcs | Data sheet | Micro Jacks1432-1,2,3 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | No Tail | Tail Diameter | - |
| Socket Depth | - | Series | - |
| Pin Hole Diameter | - | Packaging | Bulk |
| Other Names | 1432-3K 1432-3K-ND 36-1432-3 |
Operating Temperature | - |
| Mounting Hole Diameter | 0.040" (1.02mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.282" (7.16mm) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insertion Force | - |
| Flange Diameter | 0.055" (1.40mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.015" ~ 0.021" (0.38mm ~ 0.53mm) No Tail Press-Fit | Contact Material | Beryllium Copper |
| Contact Finish Thickness | 200.0µin (5.08µm) | Contact Finish | Tin-Lead |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.015" ~ 0.021" (0.38mm ~ 0.53mm) |
