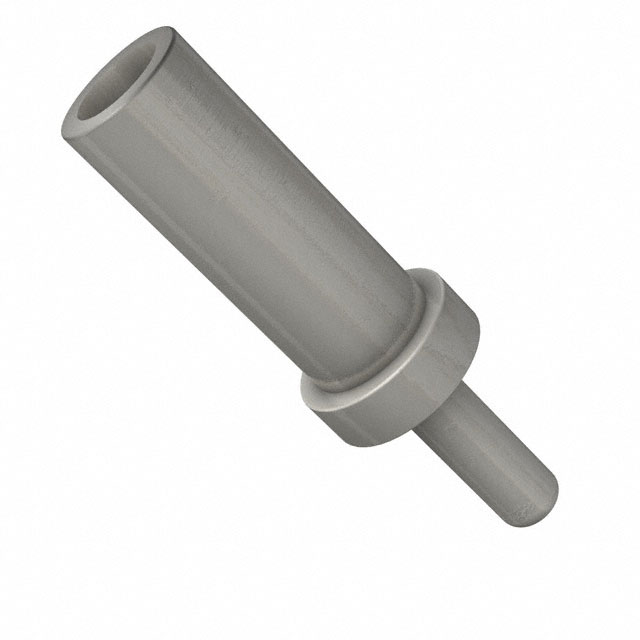

1424-4
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1424-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1424-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1424-4 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PC PIN CIRC 0.025DIA TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.07 | $0.067 | $0.05 | $0.046 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.041 | $0.032 | $0.029 | $0.028 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1424-4 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.025DIA TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 888130 pcs | Data sheet | 1424-1,2,3,4 DrawingMicro Pins |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia | Packaging | Bulk |
| Other Names | 1424-4K 1424-4K-ND 36-1424-4 9-1424-4-TL |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.052" (1.32mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.245" (6.22mm) | Length - Below Flange | 0.145" (3.68mm) |
| Length - Above Flange | 0.079" (2.01mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.062" (1.57mm) | Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.025" (0.64mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | 200.0µin (5.08µm) |
| Contact Finish | Tin | Board Thickness | 0.125" (3.18mm) |
