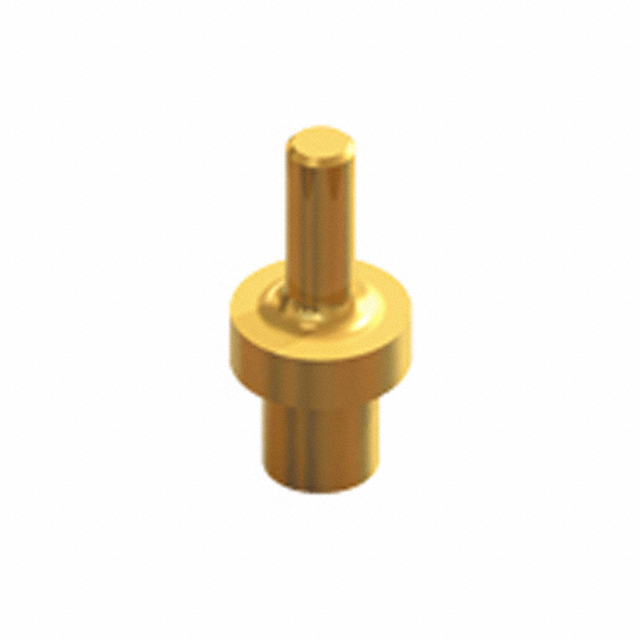

1380-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1380-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1380-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1380-1 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PC PIN CIRC 0.035DIA GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.064 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1380-1 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.035DIA GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 375434 pcs | Data sheet | 1380-1 Drawing Micro Pins |
| Category | Connectors, Interconnects | Termination | Swage |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | - |
| Pin Size - Above Flange | 0.035" (0.89mm) Dia | Packaging | Bulk |
| Other Names | 1380-1K 1380-1K-ND 13801 36-1380-1 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.062" (1.57mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.192" (4.88mm) | Length - Below Flange | 0.062" (1.57mm) |
| Length - Above Flange | 0.100" (2.54mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.090" (2.29mm) | Detailed Description | PC Pin Terminal Connector Through Hole Gold 0.035" (0.89mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Finish | Gold | Board Thickness | 0.032" (0.81mm) |
