1236

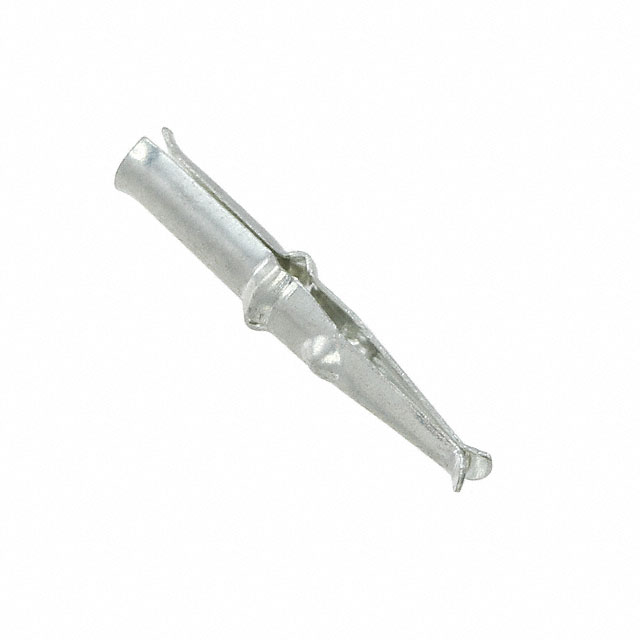

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1236 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1236 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1236 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PIN RCPT .010-.050 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.059 | $0.057 | $0.042 | $0.039 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.035 | $0.027 | $0.025 | $0.024 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1236 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PIN RCPT .010-.050 PRESSFIT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 914167 pcs | Data sheet | Push-In Terminals, Pins1236 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Tail Type | Standard Tail | Tail Diameter | - |
| Socket Depth | 0.219" (5.56mm) | Series | - |
| Pin Hole Diameter | 0.050" (1.27mm) | Packaging | Bulk |
| Other Names | 1236K 1236K-ND 36-1236 |
Operating Temperature | - |
| Mounting Hole Diameter | 0.062" ~ 0.067" (1.57mm ~ 1.70mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.469" (11.90mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Force | - |
| Flange Diameter | 0.080" (2.03mm) | Features | - |
| Detailed Description | Pin Receptacle Connector 0.010" ~ 0.050" (0.25mm ~ 1.27mm) Standard Tail Press-Fit | Contact Material | Brass |
| Contact Finish Thickness | - | Contact Finish | Tin |
| Board Thickness | - | Accepts Square Pin Size | - |
| Accepts Pin Diameter | 0.010" ~ 0.050" (0.25mm ~ 1.27mm) |
