1230

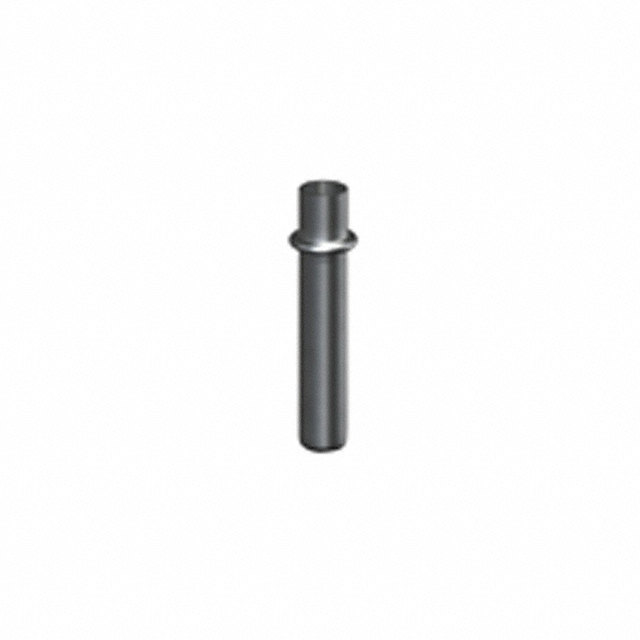

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1230 with confidence from Components-World.HK, 1 Year Warranty
Dowload 1230 Details in PDFSee Product Specifications for product details.
Buy 1230 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1230 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PC PIN CIRC 0.156DIA NICKEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.079 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1230 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.156DIA NICKEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 298796 pcs | Data sheet | Push-In Terminals, Pins1230 Drawing |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | 0.156" (3.96mm) Dia |
| Pin Size - Above Flange | 0.156" (3.96mm) Dia | Packaging | Bulk |
| Other Names | 1230K 1230K-ND 36-1230 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.504" (12.80mm) | Length - Below Flange | 0.125" (3.18mm) |
| Length - Above Flange | 0.347" (8.81mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.215" (5.46mm) | Detailed Description | PC Pin Terminal Connector Through Hole Nickel 0.156" (3.96mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Nickel | Board Thickness | 0.062" (1.57mm) or 0.093" (2.36mm) |
