1223

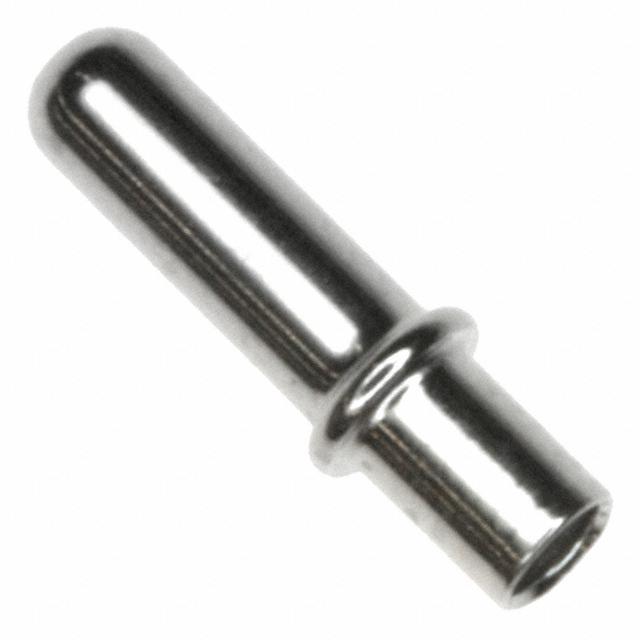

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1223 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1223 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1223 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PC PIN CIRC 0.093DIA NICKEL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.10 | $0.094 | $0.07 | $0.065 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.058 | $0.045 | $0.041 | $0.04 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1223 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.093DIA NICKEL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 526211 pcs | Data sheet | 1223 DrawingPush-In Terminals, Pins |
| Category | Connectors, Interconnects | Termination | Staking Flare |
| Terminal Type | PC Pin | Terminal Style | Single End |
| Series | - | Pin Size - Below Flange | 0.093" (2.36mm) Dia |
| Pin Size - Above Flange | 0.093" (2.36mm) Dia | Packaging | Bulk |
| Other Names | 1223K 1223K-ND 36-1223 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | - | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.418" (10.62mm) | Length - Below Flange | 0.125" (3.18mm) |
| Length - Above Flange | 0.267" (6.78mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Insulation | Non-Insulated |
| Flange Diameter | 0.125" (3.18mm) | Detailed Description | PC Pin Terminal Connector Through Hole Nickel 0.093" (2.36mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Nickel | Board Thickness | 0.062" (1.57mm) or 0.093" (2.36mm) |
