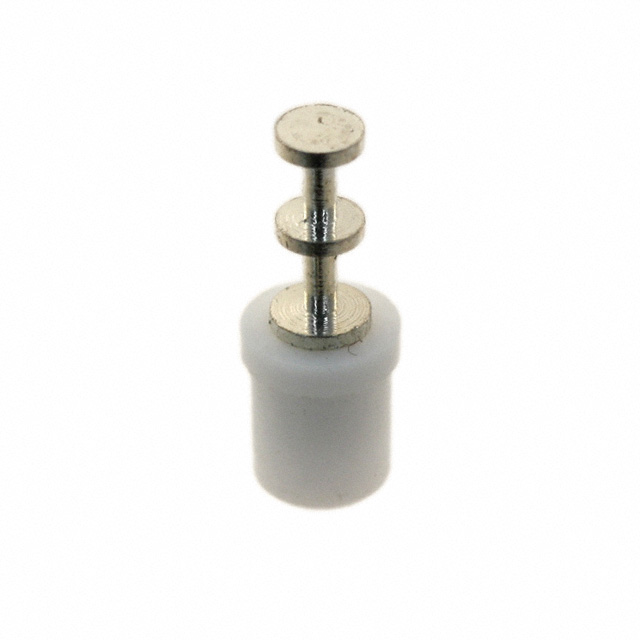

11306
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 11306 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 11306 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 11306 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | TERM TURRET SINGLE L=7.37MM TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.354 | $0.294 | $0.266 | $0.254 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.231 | $0.207 | $0.173 | $0.162 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 11306 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | TERM TURRET SINGLE L=7.37MM TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 122457 pcs | Data sheet | PTFE Insulated Terminals, Pins11306 Drawing |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | Single End | Staking Side OD | - |
| Staking Side ID | - | Series | - |
| Other Names | 11306K 11306K-ND 36-11306 |
Number of Turrets | Double |
| Mounting Type | Through Hole | Mounting Hole Diameter | 0.136" (3.45mm) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Insulation | Polytetrafluoroethylene (PTFE) |
| Manufacturer Standard Lead Time | 6 Weeks | Length - Overall | 0.455" (11.56mm) |
| Length - Below Flange | 0.165" (4.19mm) | Length - Above Board | 0.290" (7.37mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Color | White |
| Insulation | Insulated | Flange Diameter | 0.172" (4.37mm) |
| Diameter - Turret Head | 0.093" (2.36mm) | Detailed Description | Terminal Turret Connector Single End 0.290" (7.37mm) Tin |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.062" (1.57mm) |
