11155

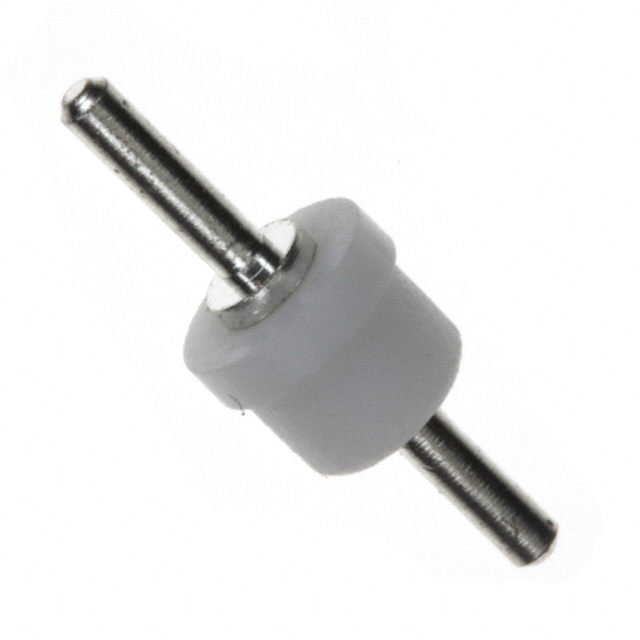

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 11155 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 11155 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 11155 |
|---|---|
| Manufacturer | Keystone Electronics Corp. |
| Description | CONN PC PIN CIRC 0.040DIA TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 50 pcs | 100 pcs | |
|---|---|---|---|---|---|
| $0.494 | $0.41 | $0.37 | $0.354 | ||
| 250 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.322 | $0.288 | $0.241 | $0.225 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 11155 | Manufacturer | Keystone Electronics Corp. |
|---|---|---|---|
| Description | CONN PC PIN CIRC 0.040DIA TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88341 pcs | Data sheet | 11155 DrawingPTFE Insulated Terminals, Pins |
| Category | Connectors, Interconnects | Termination | Press-Fit |
| Terminal Type | PC Pin | Terminal Style | Double End |
| Series | - | Pin Size - Below Flange | 0.040" (1.02mm) Dia |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia | Packaging | Bulk |
| Other Names | 11155-ND 11155K 11155K-ND 36-11155 Q3740012 |
Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.136" (3.45mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Insulation | Polytetrafluoroethylene (PTFE) | Manufacturer Standard Lead Time | 6 Weeks |
| Length - Overall | 0.515" (13.08mm) | Length - Below Flange | 0.265" (6.73mm) |
| Length - Above Flange | 0.210" (5.33mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | White | Insulation | Insulated |
| Flange Diameter | 0.172" (4.37mm) | Detailed Description | PC Pin Terminal Connector Through Hole Tin 0.040" (1.02mm) Dia |
| Contact Material | Brass | Contact Finish Thickness | - |
| Contact Finish | Tin | Board Thickness | 0.062" (1.57mm) |
