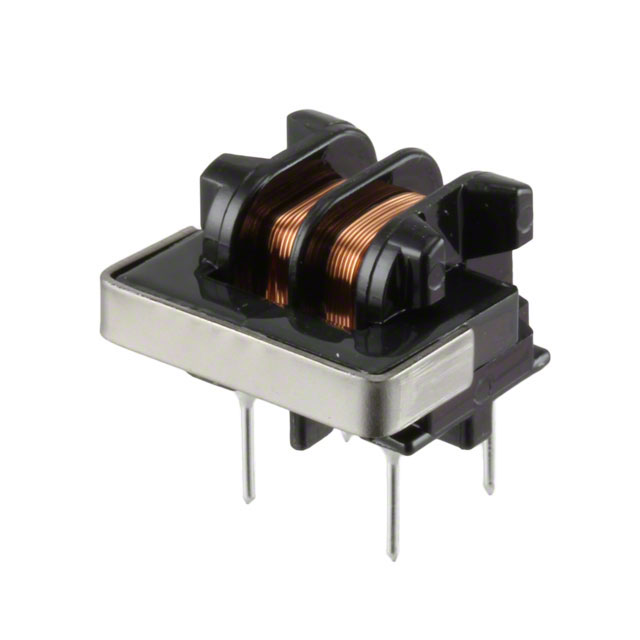

SU9H-05020
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SU9H-05020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SU9H-05020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SU9H-05020 |
|---|---|
| Manufacturer | KEMET |
| Description | CMC 2MH 500MA 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.325 | $0.317 | $0.212 | $0.189 | $0.173 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.155 | $0.152 | $0.11 | $0.097 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SU9H-05020 | Manufacturer | KEMET |
|---|---|---|---|
| Description | CMC 2MH 500MA 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 209597 pcs | Data sheet | SU 9(V,H) Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | 250V | Size / Dimension | 0.669" L x 0.610" W (17.00mm x 15.50mm) |
| Series | SU | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | 399-10705 | Operating Temperature | -25°C ~ 120°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 2mH @ 1kHz |
| Height (Max) | 0.492" (12.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 2mH @ 1kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1 Ohm |
| DC Resistance (DCR) (Max) | 1 Ohm | Current Rating (Max) | 500mA |
| Approvals | - |
