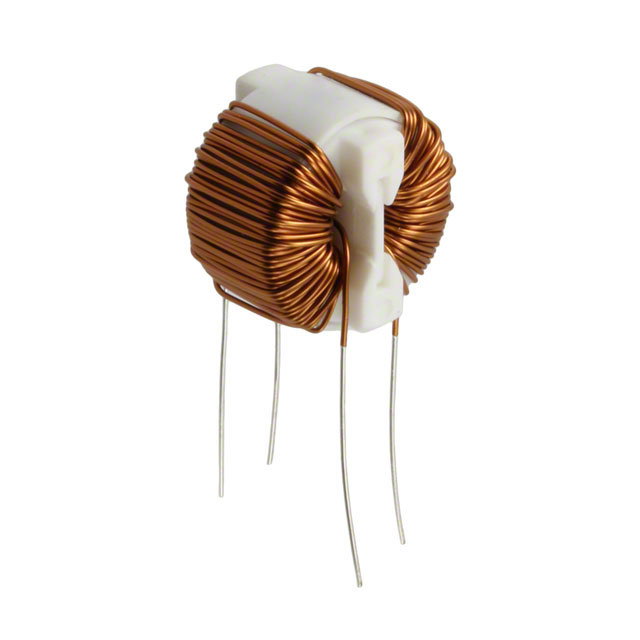

SC-01-80G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SC-01-80G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SC-01-80G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SC-01-80G |
|---|---|
| Manufacturer | KEMET |
| Description | COMMON MODE CHOKE 8MH 1A 2LN TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.57 | $0.456 | $0.371 | $0.361 | $0.352 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.342 | $0.339 | $0.30 | $0.276 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SC-01-80G | Manufacturer | KEMET |
|---|---|---|---|
| Description | COMMON MODE CHOKE 8MH 1A 2LN TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86446 pcs | Data sheet | SC-G, GS Series |
| Category | Filters | Voltage Rating - DC | 250V |
| Voltage Rating - AC | 250V | Size / Dimension | 0.689" Dia x 0.551" W (17.50mm x 14.00mm) |
| Series | SC | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, No Base, 4 PC Pin |
| Other Names | 399-10633 | Operating Temperature | -25°C ~ 105°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 8mH @ 100kHz |
| Height (Max) | 0.689" (17.50mm) | Filter Type | Power Line |
| Features | - | Detailed Description | 8mH @ 100kHz 2 Line Common Mode Choke Through Hole 1A DCR 300 mOhm |
| DC Resistance (DCR) (Max) | 300 mOhm | Current Rating (Max) | 1A |
| Approvals | - |
