Home > Products > Capacitors > Film Capacitors > PHE820EF6680MR06L2

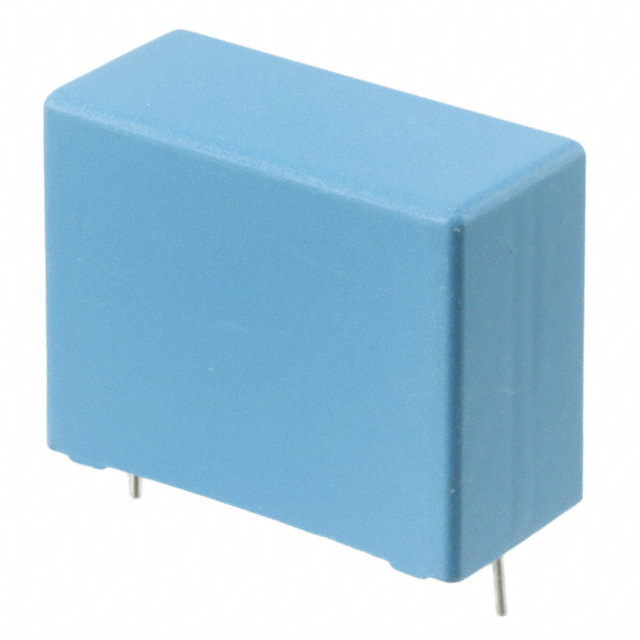

PHE820EF6680MR06L2

PHE820EF6680MR06L2

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy PHE820EF6680MR06L2 with confidence from Components-World.HK, 1 Year Warranty

Dowload PHE820EF6680MR06L2 Details in PDF

Request a Quote

Part Number	PHE820EF6680MR06L2
Manufacturer	KEMET
Description	CAP FILM 0.68UF 20% 300VAC RAD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 58454 pcs
Reference Price (In US Dollars)	612 pcs
Reference Price (In US Dollars)	$0.589

Product parameter
Data sheet

Product parameter

Part Number	PHE820EF6680MR06L2	Manufacturer	KEMET
Description	CAP FILM 0.68UF 20% 300VAC RAD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58454 pcs	Data sheet	PHE820EF6680MR06L2 Spec
Category	Capacitors	Voltage Rating - DC	-
Voltage Rating - AC	300V	Tolerance	±20%
Termination	PC Pins	Size / Dimension	1.240" L x 0.571" W (31.50mm x 14.50mm)
Series	PHE820	Ratings	X2
Packaging	Bulk	Package / Case	Radial
Other Names	399-7603 F720FM684M300C	Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Manufacturer Standard Lead Time	27 Weeks	Lead Spacing	1.083" (27.50mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height - Seated (Max)	0.965" (24.50mm)
Features	-	Dielectric Material	Polyester, Metallized
Detailed Description	0.68µF Film Capacitor 300V Polyester, Metallized Radial	Capacitance	0.68µF
Applications	EMI, RFI Suppression
