Home > Products > Inductors, Coils, Chokes > Fixed Inductors > MPLCH0740L3R3

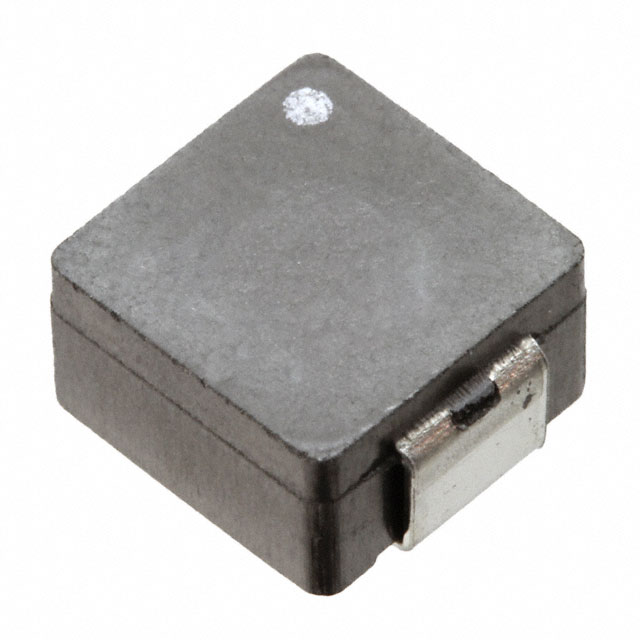

MPLCH0740L3R3

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MPLCH0740L3R3 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MPLCH0740L3R3
Manufacturer	KEMET
Description	FIXED IND 3.3UH 7.8A 19 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 134011 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs
Reference Price (In US Dollars)	$0.336	$0.31	$0.224	$0.172

Product parameter
Data sheet

Product parameter

Part Number	MPLCH0740L3R3	Manufacturer	KEMET
Description	FIXED IND 3.3UH 7.8A 19 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	134011 pcs	Data sheet	MPLCH Series
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±20%	Supplier Device Package	-
Size / Dimension	0.307" L x 0.264" W (7.80mm x 6.70mm)	Shielding	Shielded
Series	MPLCH	Ratings	-
Q @ Freq	-	Packaging	Original-Reel®
Package / Case	Nonstandard	Other Names	399-10991-6
Operating Temperature	-20°C ~ 120°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	-
Manufacturer Standard Lead Time	24 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	3.3µH
Height - Seated (Max)	0.157" (4.00mm)	Frequency - Self Resonant	-
Detailed Description	3.3µH Shielded Wirewound Inductor 7.8A 19 mOhm Max Nonstandard	DC Resistance (DCR)	19 mOhm Max
Current Rating	7.8A	Current - Saturation	7A
