Home > Products > Capacitors > Aluminum Electrolytic Capacitors > EDK226M016A9BAA

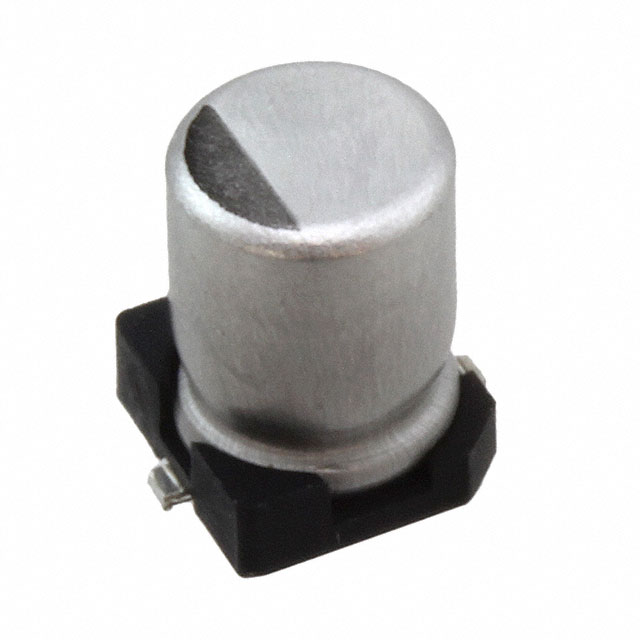

EDK226M016A9BAA

EDK226M016A9BAA

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy EDK226M016A9BAA with confidence from Components-World.HK, 1 Year Warranty

Dowload EDK226M016A9BAA Details in PDF

Request a Quote

Part Number	EDK226M016A9BAA
Manufacturer	KEMET
Description	CAP ALUM 22UF 20% 16V SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 879973 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$0.112	$0.077	$0.044	$0.031	$0.027

Product parameter
Data sheet

Product parameter

Part Number	EDK226M016A9BAA	Manufacturer	KEMET
Description	CAP ALUM 22UF 20% 16V SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	879973 pcs	Data sheet	EDK Series Datasheet
Category	Capacitors	Voltage - Rated	16V
Tolerance	±20%	Surface Mount Land Size	0.169" L x 0.169" W (4.30mm x 4.30mm)
Size / Dimension	0.157" Dia (4.00mm)	Series	EDK
Ripple Current @ Low Frequency	28mA @ 120Hz	Ripple Current @ High Frequency	35mA @ 10kHz
Ratings	-	Polarization	Polar
Packaging	Original-Reel®	Package / Case	Radial, Can - SMD
Other Names	399-11437-6	Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	20 Weeks	Lifetime @ Temp.	2000 Hrs @ 85°C
Lead Spacing	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.222" (5.65mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C	Capacitance	22µF
Applications	General Purpose
