Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > SM30B-ZPDSS-TF(LF)(SN)

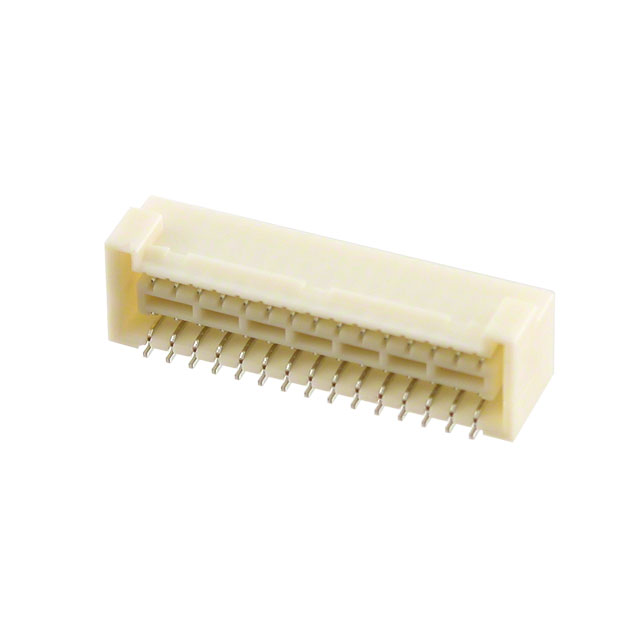

SM30B-ZPDSS-TF(LF)(SN)

SM30B-ZPDSS-TF(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM30B-ZPDSS-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number SM30B-ZPDSS-TF(LF)(SN)
Manufacturer JST
Description CONN HEADER R/A SMD 30POS ZPD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 40172 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs
$0.956$0.918$0.765

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.956

Product parameter

Part Number SM30B-ZPDSS-TF(LF)(SN) Manufacturer JST
Description CONN HEADER R/A SMD 30POS ZPD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 40172 pcs Data sheet ZPD Connectors
Category Connectors, Interconnects Voltage Rating 100V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series ZPD
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Original-Reel® Overall Contact Length -
Other Names 455-2561-6 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 30 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon
Insulation Height 0.309" (7.85mm) Insulation Color Natural
Ingress Protection - Features -
Fastening Type Locking Ramp Detailed Description Connector Header Surface Mount, Right Angle 30 position 0.059" (1.50mm)
Current Rating 2A Contact Type Outer Shroud Contact
Contact Shape Rectangular Contact Material Copper Alloy
Contact Length - Post - Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
