Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > SM20B-SRDS-G-TF(LF)(SN)

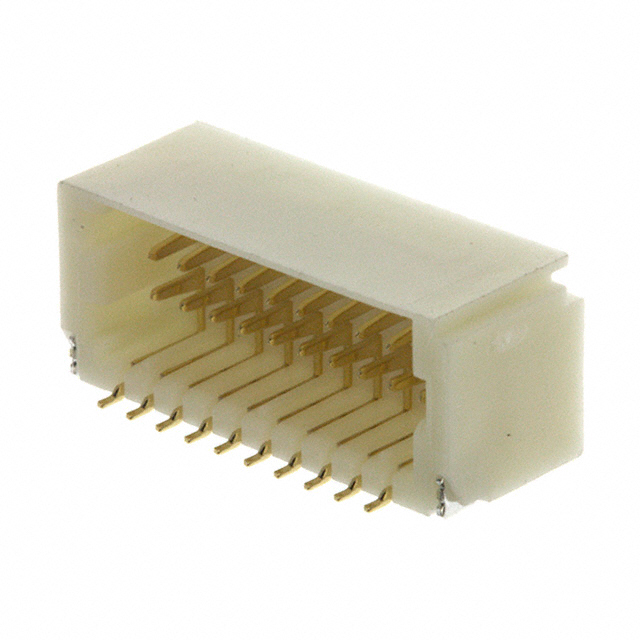

SM20B-SRDS-G-TF(LF)(SN)

SM20B-SRDS-G-TF(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM20B-SRDS-G-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number SM20B-SRDS-G-TF(LF)(SN)
Manufacturer JST
Description CONN HEADER SHD 20POS SIDE 1MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 68826 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.727$0.66$0.566$0.472

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.727

Product parameter

Part Number SM20B-SRDS-G-TF(LF)(SN) Manufacturer JST
Description CONN HEADER SHD 20POS SIDE 1MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 68826 pcs Data sheet SHD,SRD Series Datasheet
Category Connectors, Interconnects Voltage Rating 50V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series SHD
Row Spacing - Mating - Pitch - Mating 0.039" (1.00mm)
Packaging Cut Tape (CT) Overall Contact Length -
Other Names 455-1866-1 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 20 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon, Glass Filled
Insulation Height 0.217" (5.51mm) Insulation Color Natural
Ingress Protection - Features Solder Retention
Fastening Type Push-Pull Detailed Description Connector Header Surface Mount, Right Angle 20 position 0.039" (1.00mm)
Current Rating 1A Contact Type Male Pin
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post - Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post - Contact Finish - Mating Gold
Connector Type Header Applications -
