Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > SM16B-ZPDSS-TF(LF)(SN)

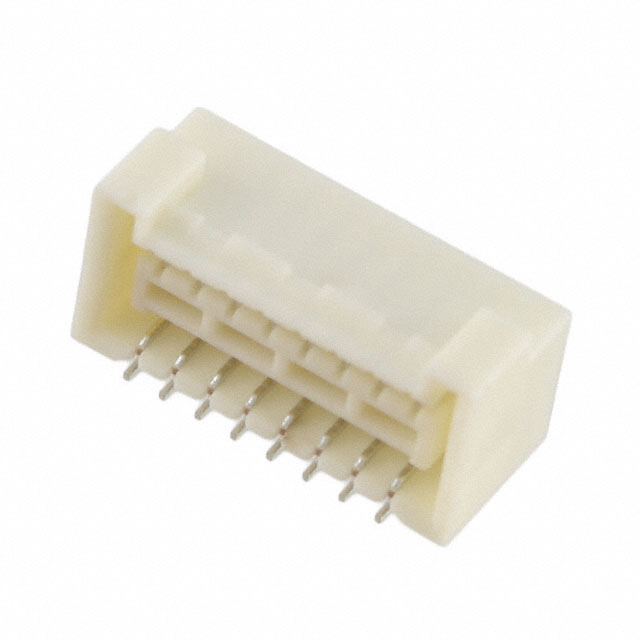

SM16B-ZPDSS-TF(LF)(SN)

SM16B-ZPDSS-TF(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM16B-ZPDSS-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number SM16B-ZPDSS-TF(LF)(SN)
Manufacturer JST
Description CONN HEADER R/A SMD 16POS ZPD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 74724 pcs
Reference Price
(In US Dollars)		700 pcs1400 pcs2100 pcs3500 pcs4900 pcs
$0.367$0.315$0.304$0.294$0.279

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.367

Product parameter

Part Number SM16B-ZPDSS-TF(LF)(SN) Manufacturer JST
Description CONN HEADER R/A SMD 16POS ZPD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 74724 pcs Data sheet ZPD Connectors
Category Connectors, Interconnects Voltage Rating 100V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series ZPD
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Tape & Reel (TR) Overall Contact Length -
Other Names 455-2554-2
SM16B-ZPDSS-TF (LF)(SN)
SM16BZPDSSTFLFSN		 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 16 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon
Insulation Height 0.309" (7.85mm) Insulation Color Natural
Ingress Protection - Features -
Fastening Type Locking Ramp Detailed Description Connector Header Surface Mount, Right Angle 16 position 0.059" (1.50mm)
Current Rating 2A Contact Type Outer Shroud Contact
Contact Shape Rectangular Contact Material Copper Alloy
Contact Length - Post - Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
