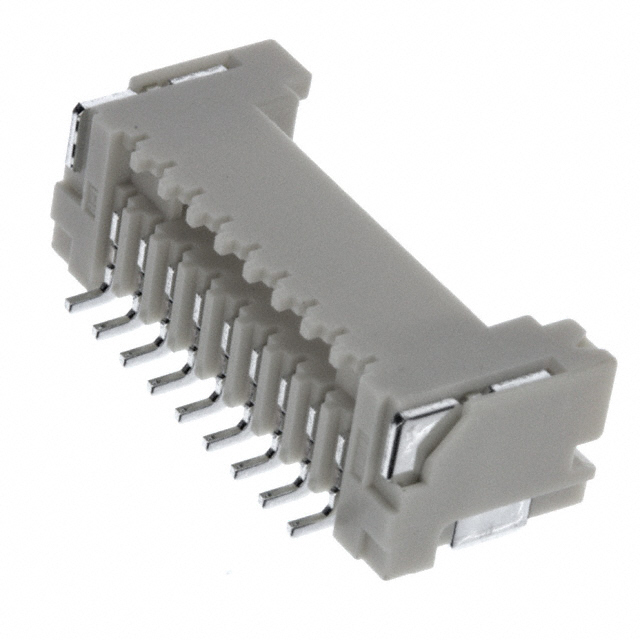

SM09B-ZESS-TB(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM09B-ZESS-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SM09B-ZESS-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SM09B-ZESS-TB(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER R/A SMD 9POS ZE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.182 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SM09B-ZESS-TB(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER R/A SMD 9POS ZE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 122630 pcs | Data sheet | ZE Connector DatasheetSM(7-12)B-ZExx-TB(LF)(SN) ) Pkg Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | ZE |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-2402-2 455-2402-2-ND SM09B-ZESS-TB (LF)(SN) SM09B-ZESS-TB(LF)(SN)- |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.228" (5.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 9 position 0.059" (1.50mm) |
| Current Rating | 2A | Contact Type | Outer Shroud Contact |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
