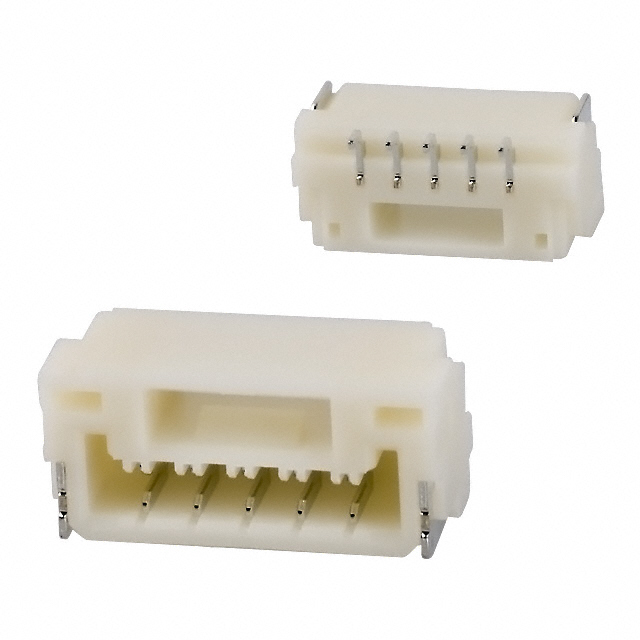

SM05B-GHS-TB(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SM05B-GHS-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SM05B-GHS-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SM05B-GHS-TB(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER GH SIDE 5POS 1.25MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2500 pcs | 5000 pcs | 12500 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.077 | $0.072 | $0.065 | $0.064 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SM05B-GHS-TB(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER GH SIDE 5POS 1.25MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 311544 pcs | Data sheet | GH Connectors |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | GH |
| Row Spacing - Mating | - | Pitch - Mating | 0.049" (1.25mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-1567-2 SM05B-GHS-TB(LF)(SN)- SM05B-GHS-TB(LF)(SN);- SM05BGHSTBLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T |
| Insulation Height | 0.167" (4.25mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm) |
| Current Rating | 1A | Contact Type | Outer Shroud Contact |
| Contact Shape | Rectangular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
