S6B-PH-SM4-TB(LF)(SN)

S6B-PH-SM4-TB(LF)(SN)

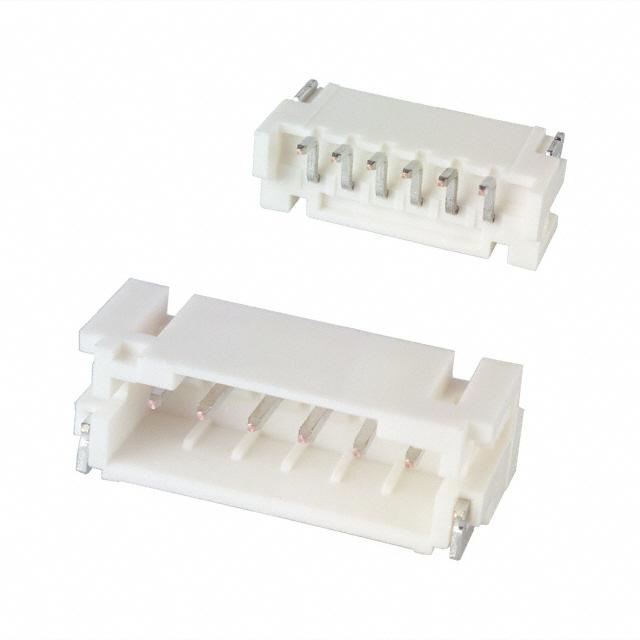

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S6B-PH-SM4-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number S6B-PH-SM4-TB(LF)(SN)
Manufacturer JST
Description CONN HEADER PH SIDE 6POS 2MM SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 155400 pcs
Reference Price
(In US Dollars)		1000 pcs2000 pcs3000 pcs
$0.159$0.149$0.144
5000 pcs10000 pcs25000 pcs
$0.139$0.132$0.129

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.159

Product parameter

Part Number S6B-PH-SM4-TB(LF)(SN) Manufacturer JST
Description CONN HEADER PH SIDE 6POS 2MM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 155400 pcs Data sheet PH Series Datasheet
Category Connectors, Interconnects Voltage Rating 100V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series PH
Row Spacing - Mating - Pitch - Mating 0.079" (2.00mm)
Packaging Tape & Reel (TR) Overall Contact Length -
Other Names 455-1753-2
S6BPHSM4TBLFSN		 Operating Temperature -25°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 6 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA6T), Nylon 6T
Insulation Height 0.217" (5.51mm) Insulation Color Natural
Ingress Protection - Features Solder Retention
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
Current Rating 2A Contact Type Male Pin
Contact Shape Square Contact Material Copper Alloy
Contact Length - Post - Contact Length - Mating 0.130" (3.30mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
