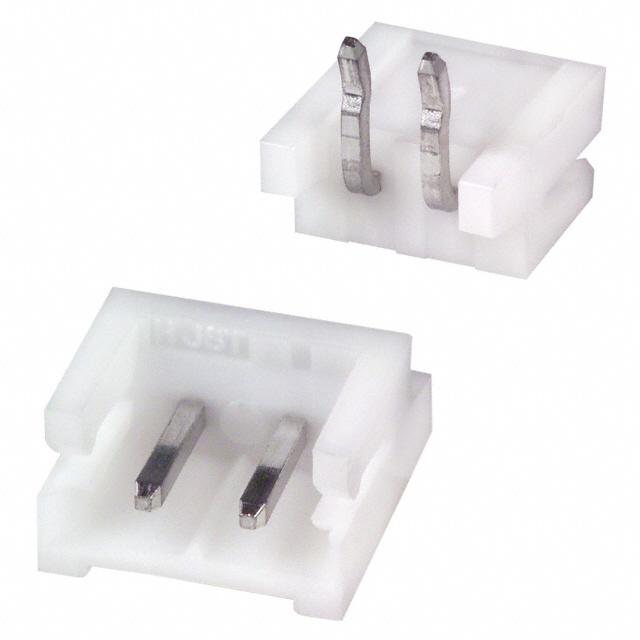

S2B-EH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S2B-EH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S2B-EH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S2B-EH |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER EH SIDE 2POS 2.5MM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | S2B-EH | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER EH SIDE 2POS 2.5MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5864 pcs | Data sheet | EH Connector |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | EH |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 455-1028 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.165" (4.20mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Latch Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | - |
