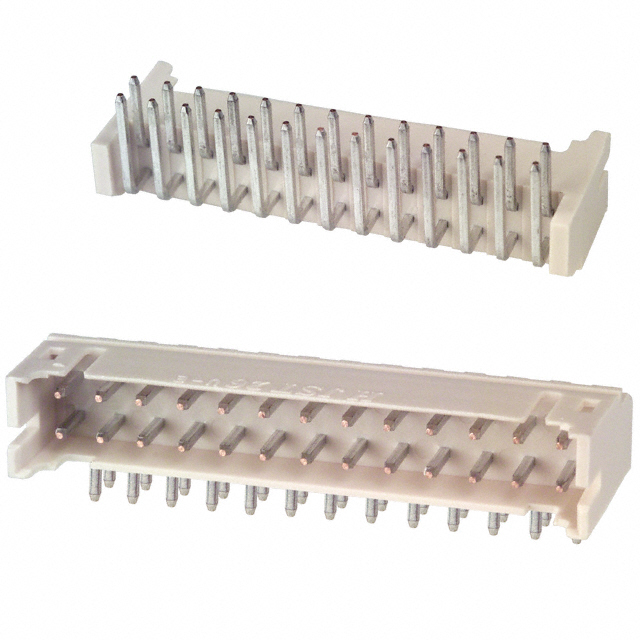

S26B-PHDSS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S26B-PHDSS with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy S26B-PHDSS with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | S26B-PHDSS |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER PHD SIDE 26POS 2MM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | S26B-PHDSS | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER PHD SIDE 26POS 2MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5451 pcs | Data sheet | PHD Connector |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PHD |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 455-1352 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.197" (5.00mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm) | Current Rating | 3A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.114" (2.90mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | - |
