S22B-PUDSS-1(LF)(SN)

S22B-PUDSS-1(LF)(SN)

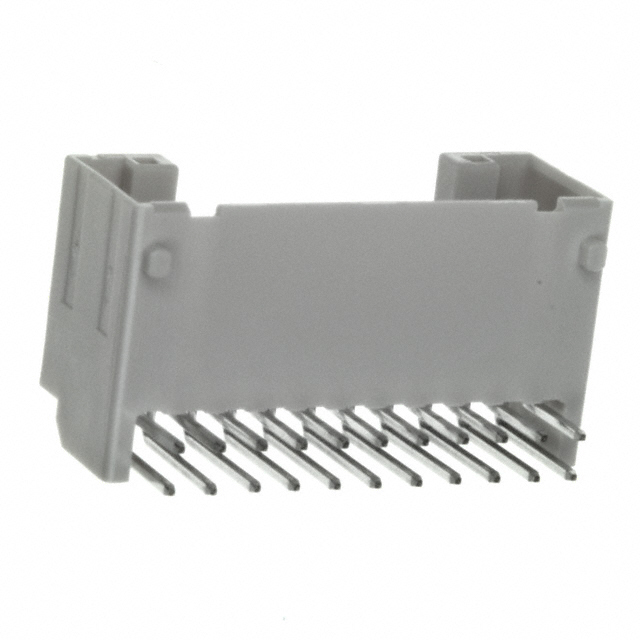

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S22B-PUDSS-1(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number S22B-PUDSS-1(LF)(SN)
Manufacturer JST
Description CONN HDR SIDE ENTRY 22 POS 2MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 149456 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs500 pcs
$0.317$0.28$0.241$0.198
1000 pcs5000 pcs10000 pcs
$0.176$0.154$0.146

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.317

Product parameter

Part Number S22B-PUDSS-1(LF)(SN) Manufacturer JST
Description CONN HDR SIDE ENTRY 22 POS 2MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 149456 pcs Data sheet PUD Connector
Category Connectors, Interconnects Voltage Rating 250V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series PUD
Row Spacing - Mating 0.079" (2.00mm) Pitch - Mating 0.079" (2.00mm)
Packaging Bulk Overall Contact Length -
Other Names 455-2492
S22BPUDSS1LFSN		 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 22 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Insulation Height 0.335" (8.51mm) Insulation Color Natural
Ingress Protection - Features Board Guide
Fastening Type Latch Holder Detailed Description Connector Header Through Hole, Right Angle 22 position 0.079" (2.00mm)
Current Rating 3A Contact Type Male Pin
Contact Shape Square Contact Material Copper Alloy
Contact Length - Post 0.118" (3.00mm) Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
