Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > S18B-PHDSS

S18B-PHDSS

S18B-PHDSS
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S18B-PHDSS with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number S18B-PHDSS
Manufacturer JST
Description CONN HEADER PHD SIDE 18POS 2MM
Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
In Stock 5520 pcs
Reference Price
(In US Dollars)		Get a quote

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.00

Product parameter

Part Number S18B-PHDSS Manufacturer JST
Description CONN HEADER PHD SIDE 18POS 2MM Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 5520 pcs Data sheet PHD Connector
Category Connectors, Interconnects Voltage Rating 250V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series PHD
Row Spacing - Mating 0.079" (2.00mm) Pitch - Mating 0.079" (2.00mm)
Packaging Bulk Overall Contact Length -
Other Names 455-1356 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 18 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Insulation Material Polyamide (PA), Nylon, Glass Filled Insulation Height 0.197" (5.00mm)
Insulation Color Natural Ingress Protection -
Features - Fastening Type Detent Lock
Detailed Description Connector Header Through Hole, Right Angle 18 position 0.079" (2.00mm) Current Rating 3A
Contact Type Male Pin Contact Shape Square
Contact Material Copper Alloy Contact Length - Post 0.118" (3.00mm)
Contact Length - Mating 0.114" (2.90mm) Contact Finish Thickness - Post -
Contact Finish Thickness - Mating - Contact Finish - Post Tin-Lead
Contact Finish - Mating Tin-Lead Connector Type Header
Applications -

Related products

$0.152/pcsRFQ
 RFQ
$23.505/pcsRFQ

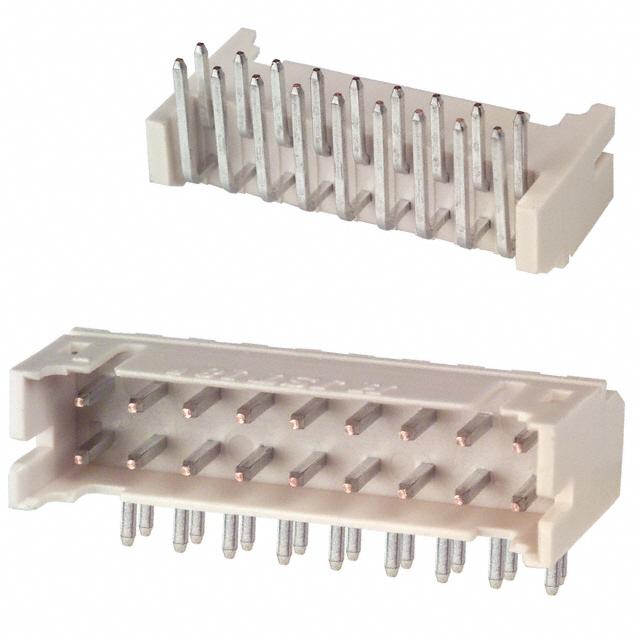

S18B-PHDSS(LF)(SN) Image
