Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > S15B-PH-SM4-TB(LF)(SN)

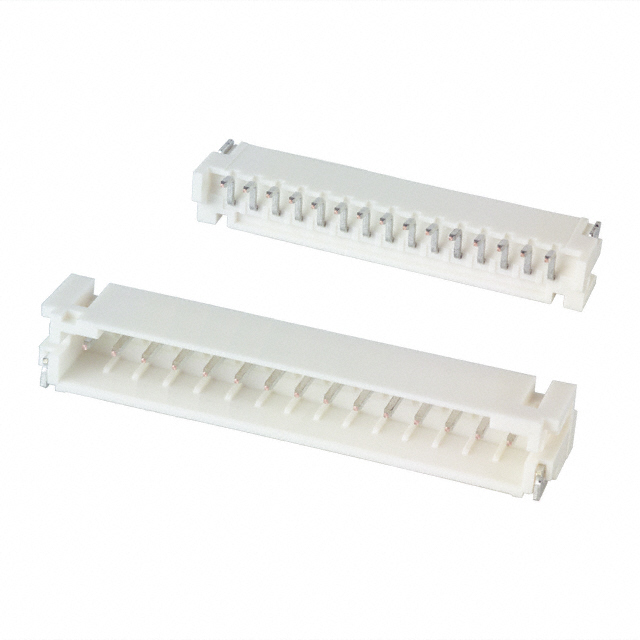

S15B-PH-SM4-TB(LF)(SN)

S15B-PH-SM4-TB(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S15B-PH-SM4-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number S15B-PH-SM4-TB(LF)(SN)
Manufacturer JST
Description CONN HEADR PH SIDE 15POS 2MM SMD
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 98839 pcs
Reference Price
(In US Dollars)		1000 pcs2000 pcs3000 pcs5000 pcs10000 pcs
$0.273$0.256$0.247$0.239$0.227

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.273

Product parameter

Part Number S15B-PH-SM4-TB(LF)(SN) Manufacturer JST
Description CONN HEADR PH SIDE 15POS 2MM SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 98839 pcs Data sheet PH Series Datasheet
Category Connectors, Interconnects Voltage Rating 100V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series PH
Row Spacing - Mating - Pitch - Mating 0.079" (2.00mm)
Packaging Tape & Reel (TR) Overall Contact Length -
Other Names 455-1761-2
S15BPHSM4TBLFSN		 Operating Temperature -25°C ~ 85°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 15 Mounting Type Surface Mount, Right Angle
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA6T), Nylon 6T
Insulation Height 0.217" (5.51mm) Insulation Color Natural
Ingress Protection - Features Solder Retention
Fastening Type Detent Lock Detailed Description Connector Header Surface Mount, Right Angle 15 position 0.079" (2.00mm)
Current Rating 2A Contact Type Male Pin
Contact Shape Square Contact Material Copper Alloy
Contact Length - Post - Contact Length - Mating 0.130" (3.30mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications -
