Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > BM20B-SRDS-G-TFC(LF)(SN)

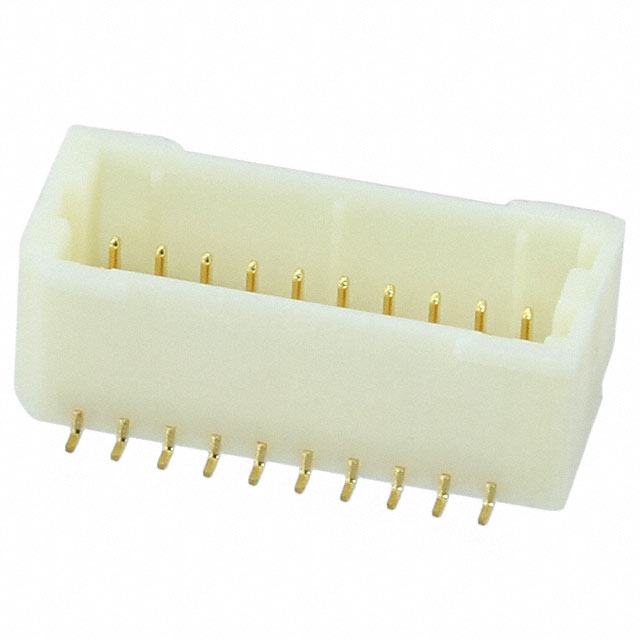

BM20B-SRDS-G-TFC(LF)(SN)

BM20B-SRDS-G-TFC(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM20B-SRDS-G-TFC(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number BM20B-SRDS-G-TFC(LF)(SN)
Manufacturer JST
Description CONN HEADER SHD 20POS TOP 1MM
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 68796 pcs
Reference Price
(In US Dollars)		1500 pcs3000 pcs7500 pcs10500 pcs
$0.355$0.343$0.326$0.318

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.355

Product parameter

Part Number BM20B-SRDS-G-TFC(LF)(SN) Manufacturer JST
Description CONN HEADER SHD 20POS TOP 1MM Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 68796 pcs Data sheet SHD Series DatasheetSHD,SRD Series Datasheet
Category Connectors, Interconnects Voltage Rating 50V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series SHD
Row Spacing - Mating - Pitch - Mating 0.039" (1.00mm)
Packaging Tape & Reel (TR) Overall Contact Length -
Other Names 455-2952-2
BM20B-SRDS-G-TFC(LF)(SN)-ND		 Operating Temperature -25°C ~ 85°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 20 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights 6.3mm Manufacturer Standard Lead Time 24 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon, Glass Filled
Insulation Height 0.167" (4.25mm) Insulation Color Natural
Ingress Protection - Features Solder Retention
Fastening Type Push-Pull Detailed Description Connector Header Surface Mount 20 position 0.039" (1.00mm)
Current Rating 1A Contact Type Male Pin
Contact Shape Square Contact Material Phosphor Bronze
Contact Length - Post - Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating -
Contact Finish - Post - Contact Finish - Mating Gold
Connector Type Header Applications -
