BM05B-AUHKS-GA-TB(LF)(SN)

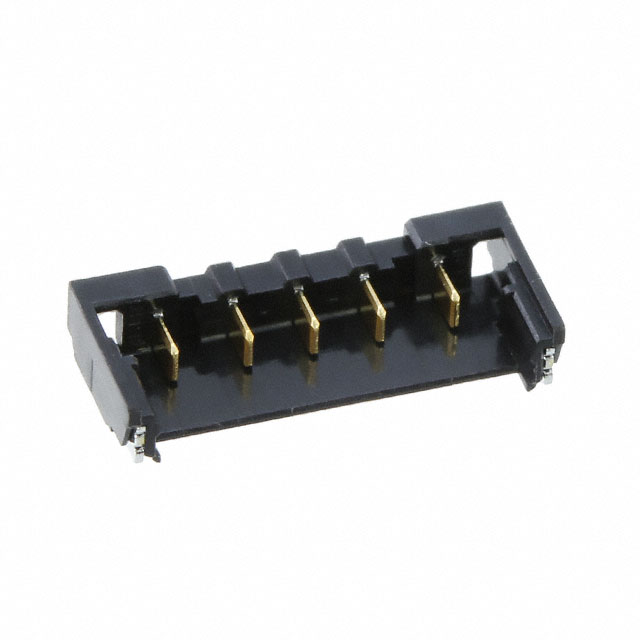

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM05B-AUHKS-GA-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM05B-AUHKS-GA-TB(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM05B-AUHKS-GA-TB(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER 5 POSITION |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 15000 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.095 | $0.088 | $0.087 | $0.085 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM05B-AUHKS-GA-TB(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER 5 POSITION | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 228052 pcs | Data sheet | AUH Connector Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 30V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Series | AUH |
| Row Spacing - Mating | - | Pitch - Mating | - |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-2903-2 BM05BAUHKSGATBLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.073" (1.85mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 5 position |
| Current Rating | - | Contact Type | Male Blade |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
