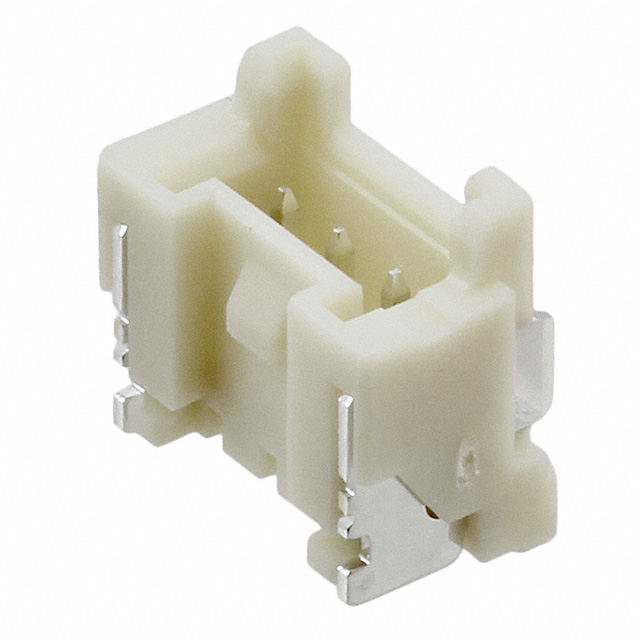

BM03B-PASS-1-TFT(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy BM03B-PASS-1-TFT(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy BM03B-PASS-1-TFT(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | BM03B-PASS-1-TFT(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER PA 3POS TOP SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | 1000 pcs | 1500 pcs | 2500 pcs | |
|---|---|---|---|---|---|
| $0.167 | $0.138 | $0.134 | $0.126 | ||
| 5000 pcs | 12500 pcs | 25000 pcs | |||
| $0.121 | $0.111 | $0.109 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | BM03B-PASS-1-TFT(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER PA 3POS TOP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 201443 pcs | Data sheet | PA Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PA |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-2638-2 BM03BPASS1TFTLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.1mm, 16mm, 16.2mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Pick and Place, Solder Retention |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Surface Mount 3 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
