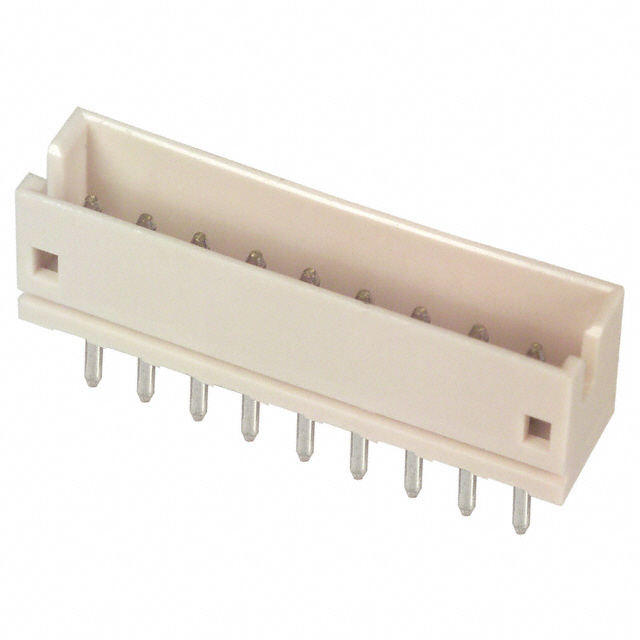

B9B-ZR(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B9B-ZR(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B9B-ZR(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B9B-ZR(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER ZH TOP 9POS 1.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.157 | $0.148 | $0.103 | $0.089 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.074 | $0.063 | $0.059 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B9B-ZR(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER ZH TOP 9POS 1.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 376451 pcs | Data sheet | ZH Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | ZH |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.256" (6.50mm) |
| Other Names | (Q)B9B-ZR(LF)(SN) 455-1664 B9BZRLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.6mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.177" (4.50mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 9 position 0.059" (1.50mm) |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.106" (2.69mm) | Contact Length - Mating | 0.094" (2.40mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
