B7B-XH-A(LF)(SN)

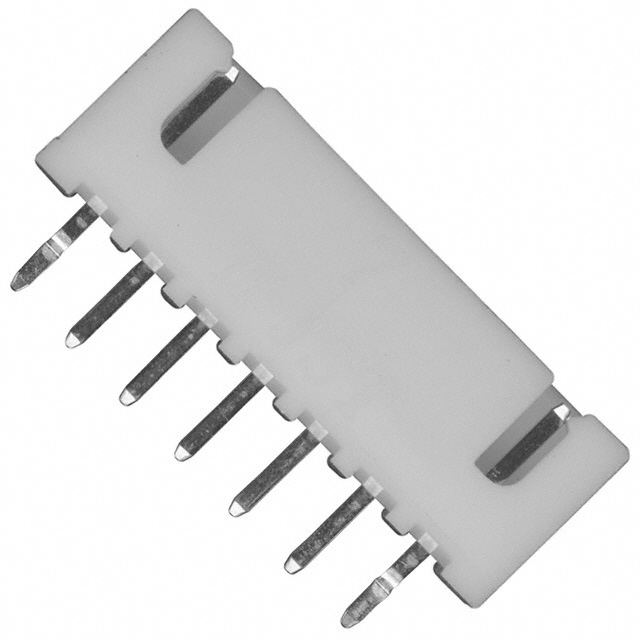

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B7B-XH-A(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B7B-XH-A(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B7B-XH-A(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER XH TOP 7POS 2.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.12 | $0.112 | $0.079 | $0.067 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.056 | $0.048 | $0.045 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B7B-XH-A(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER XH TOP 7POS 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 491620 pcs | Data sheet | XH Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | XH |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 455-2252 B7B-XH-A (LF)(SN)(P) B7B-XH-A (LF)(SN)(P); B7B-XH-A(LF)(SN)(P) B7B-XH-A(LF)(SN)(P); B7B-XH-A(LF)(SN); B7BXHALFSNP |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 9.8mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 7 position 0.098" (2.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
