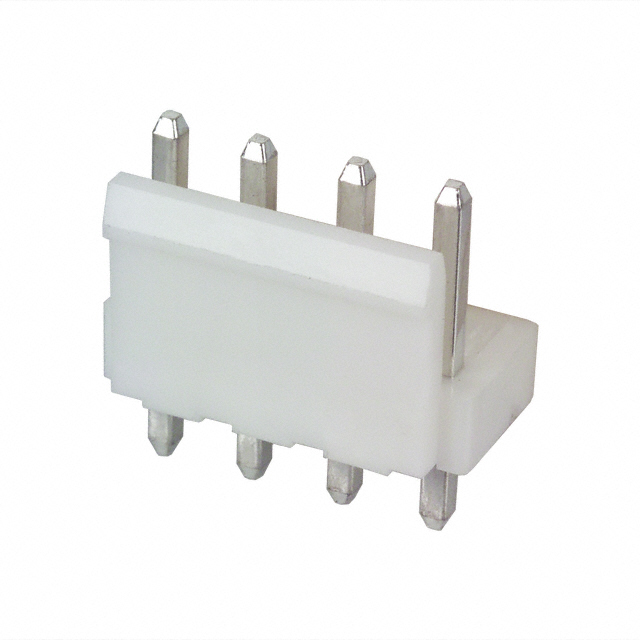

B4P-VH
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B4P-VH with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B4P-VH with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B4P-VH |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER VH TOP 4POS 3.96MM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | B4P-VH | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER VH TOP 4POS 3.96MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5742 pcs | Data sheet | VH Connector |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 1 Wall | Series | VH |
| Row Spacing - Mating | - | Pitch - Mating | 0.156" (3.96mm) |
| Packaging | Bulk | Overall Contact Length | 0.575" (14.60mm) |
| Other Names | 455-1213 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 16.5mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Insulation Height | 0.370" (9.40mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 4 position 0.156" (3.96mm) | Current Rating | 10A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.146" (3.70mm) |
| Contact Length - Mating | 0.303" (7.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | - |
