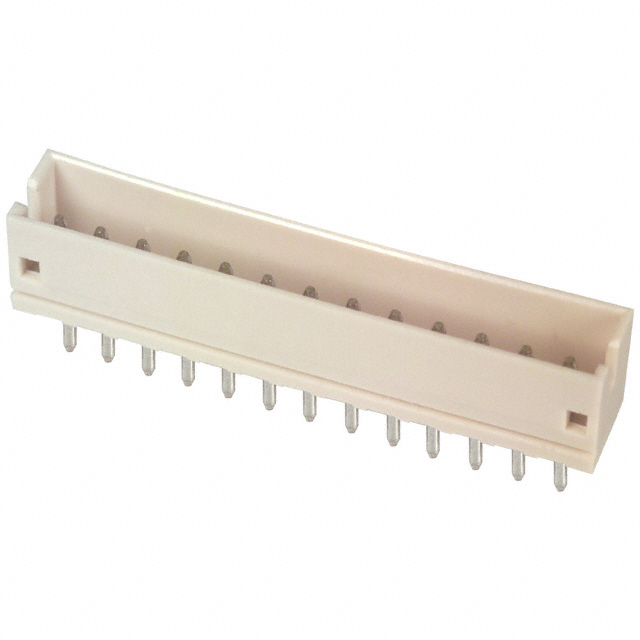

B13B-ZR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B13B-ZR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B13B-ZR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B13B-ZR |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER ZH TOP 13POS 1.5MM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | B13B-ZR | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER ZH TOP 13POS 1.5MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5436 pcs | Data sheet | ZH Connector |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | ZH |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Bulk | Overall Contact Length | 0.256" (6.50mm) |
| Other Names | 455-1209 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 13 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 5.6mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Insulation Height | 0.177" (4.50mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | - | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 13 position 0.059" (1.50mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.106" (2.69mm) |
| Contact Length - Mating | 0.094" (2.40mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | - |
