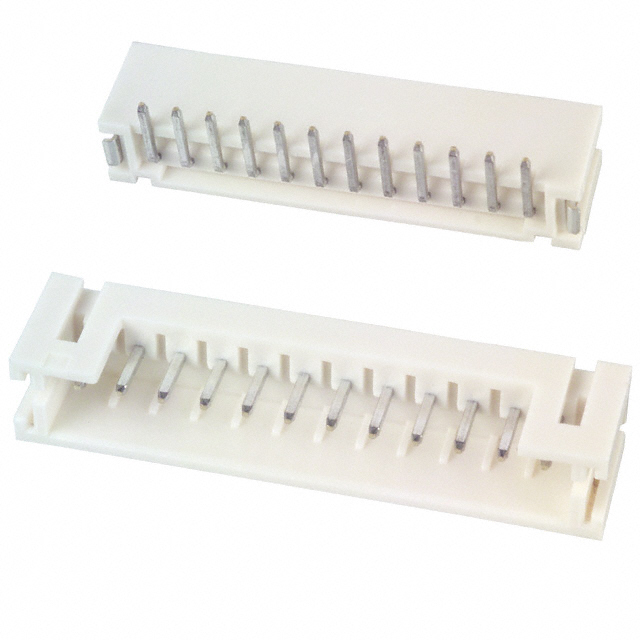

B12B-PH-SM3-TB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B12B-PH-SM3-TB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B12B-PH-SM3-TB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B12B-PH-SM3-TB |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER PH TOP 12POS 2MM SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | B12B-PH-SM3-TB | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER PH TOP 12POS 2MM SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4374 pcs | Data sheet | PH Series (Crimp Style) |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PH |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 455-1309-2 | Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 8.6mm | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA46), Nylon 4/6 | Insulation Height | 0.260" (6.60mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Surface Mount 12 position 0.079" (2.00mm) | Current Rating | 2A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.130" (3.30mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Tin-Lead | Connector Type | Header |
| Applications | - |
