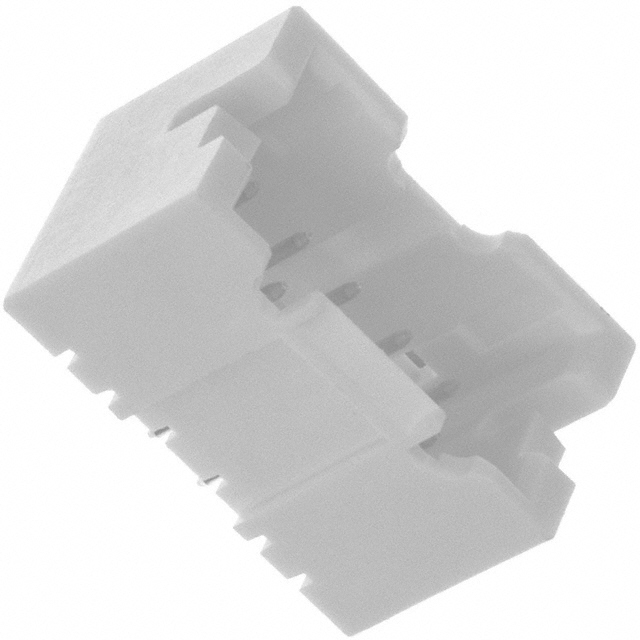

B10B-XADSS-N(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B10B-XADSS-N(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B10B-XADSS-N(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B10B-XADSS-N(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN HDR XAD 10POS 2.5MM TIN TE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.222 | $0.209 | $0.16 | $0.139 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.115 | $0.101 | $0.094 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B10B-XADSS-N(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HDR XAD 10POS 2.5MM TIN TE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 223446 pcs | Data sheet | XAD Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | XAD |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 455-2002 B10BXADSSNLFSN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 13.8mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.398" (10.11mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 10 position 0.098" (2.50mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
