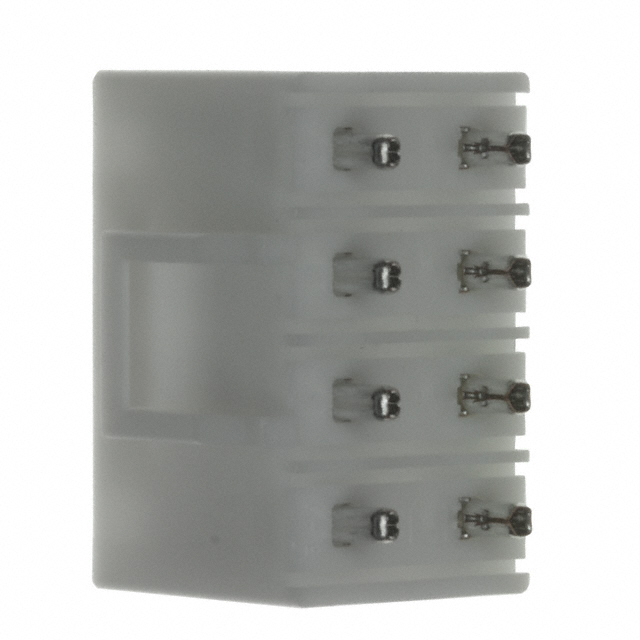

B08P-VL
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B08P-VL with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B08P-VL with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B08P-VL |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER 8POS VL SERIES TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.621 | $0.562 | $0.481 | $0.401 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.344 | $0.305 | $0.298 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B08P-VL | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER 8POS VL SERIES TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64496 pcs | Data sheet | VL Series (Crimp Style) |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | VL |
| Row Spacing - Mating | 0.326" (8.28mm) | Pitch - Mating | 0.244" (6.20mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 455-2365 B08PVL |
Operating Temperature | -25°C ~ 90°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 29.2mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.646" (16.40mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 8 position 0.244" (6.20mm) |
| Current Rating | 20A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
