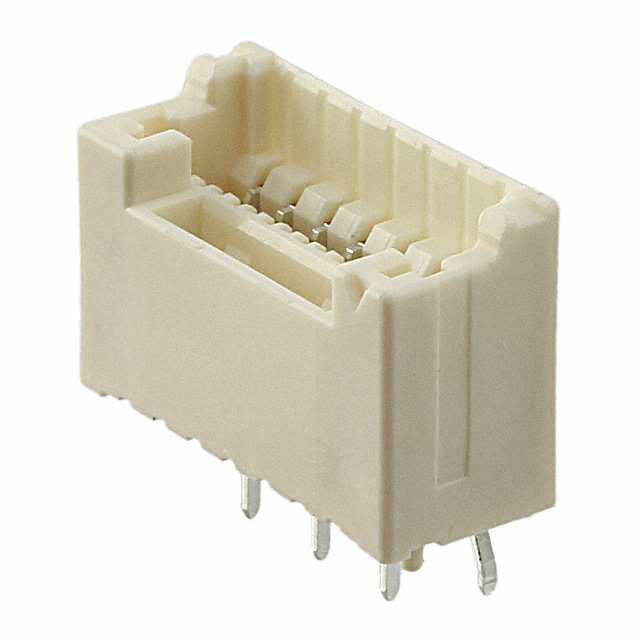

B07B-ZESK-1D(T)(LF)(SN)(N)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B07B-ZESK-1D(T)(LF)(SN)(N) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B07B-ZESK-1D(T)(LF)(SN)(N) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B07B-ZESK-1D(T)(LF)(SN)(N) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER 7POS 1.5MM T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.269 | $0.251 | $0.192 | $0.167 | ||
| 1088 pcs | 5440 pcs | 10880 pcs | |||
| $0.138 | $0.121 | $0.113 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B07B-ZESK-1D(T)(LF)(SN)(N) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER 7POS 1.5MM T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 184107 pcs | Data sheet | ZE Connector Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | ZE |
| Row Spacing - Mating | - | Pitch - Mating | 0.059" (1.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 455-2659 B07BZESK1DTLFSNN |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 10.4mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.335" (8.51mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 7 position 0.059" (1.50mm) |
| Current Rating | 2A | Contact Type | Outer Shroud Contact |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
