B05B-PNISK-1A(LF)(SN)(F)

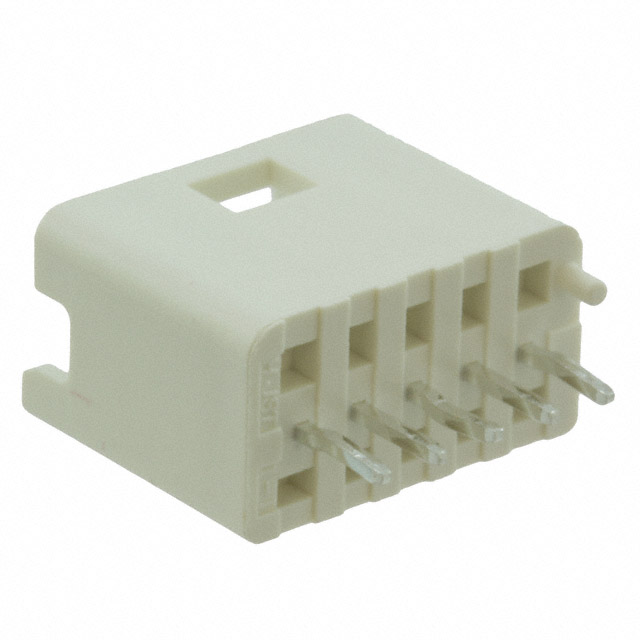

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B05B-PNISK-1A(LF)(SN)(F) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B05B-PNISK-1A(LF)(SN)(F) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B05B-PNISK-1A(LF)(SN)(F) |
|---|---|
| Manufacturer | JST |
| Description | CONN HEADER 5 POS T/H 2.0MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.176 | $0.166 | $0.127 | $0.11 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.091 | $0.08 | $0.075 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B05B-PNISK-1A(LF)(SN)(F) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN HEADER 5 POS T/H 2.0MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 316810 pcs | Data sheet | PNI Connector Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 100V |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | PNI |
| Row Spacing - Mating | - | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 455-2743 B05B-PNISK-1A (LF)(SN) (F) B05BPNISK1ALFSNF |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 5 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 12.25mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.402" (10.20mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Lock | Detailed Description | Connector Header Through Hole 5 position 0.079" (2.00mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
