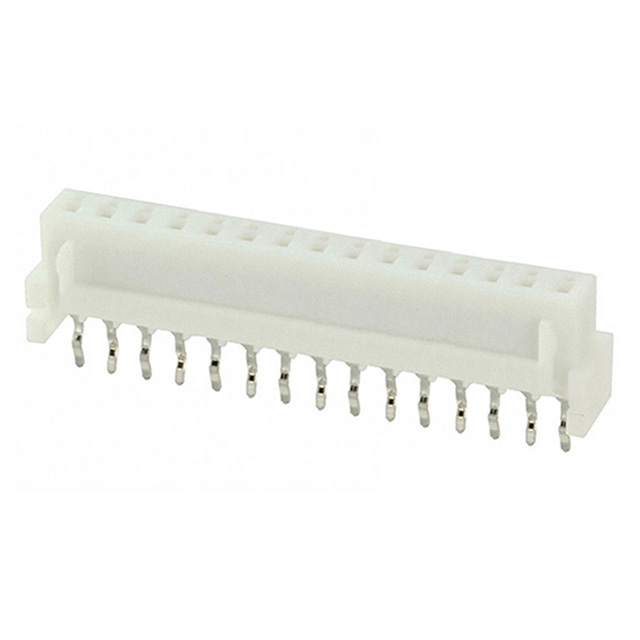

15JQ-BT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 15JQ-BT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 15JQ-BT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 15JQ-BT |
|---|---|
| Manufacturer | JST |
| Description | CONN RECEPT HOUSING 15POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | ||||
|---|---|---|---|---|---|
| $0.214 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 15JQ-BT | Manufacturer | JST |
|---|---|---|---|
| Description | CONN RECEPT HOUSING 15POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 107148 pcs | Data sheet | JQ Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Series | JQ | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 15 |
| Mounting Type | Through Hole | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.8mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.374" (9.50mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 15 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
