09JQ-BT

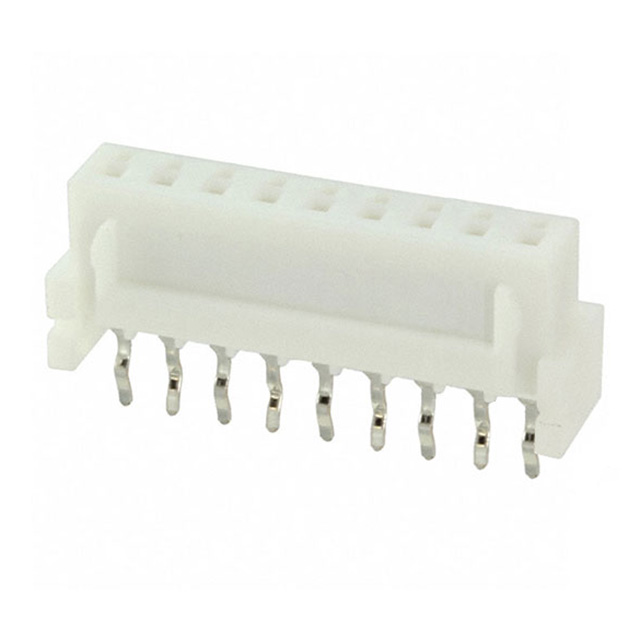

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09JQ-BT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09JQ-BT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09JQ-BT |
|---|---|
| Manufacturer | JST |
| Description | CONN RECEPT HOUSING 9POS TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.221 | $0.208 | $0.187 | $0.166 | $0.159 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.145 | $0.139 | $0.114 | $0.104 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09JQ-BT | Manufacturer | JST |
|---|---|---|---|
| Description | CONN RECEPT HOUSING 9POS TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 196755 pcs | Data sheet | JQ Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Series | JQ | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Other Names | 09JQ-BT-ND 455-2971 Q8289025V |
Operating Temperature | -25°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.8mm | Manufacturer Standard Lead Time | 24 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.374" (9.50mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 9 Position Receptacle Connector 0.098" (2.50mm) Through Hole Tin |
| Current Rating | 3A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
