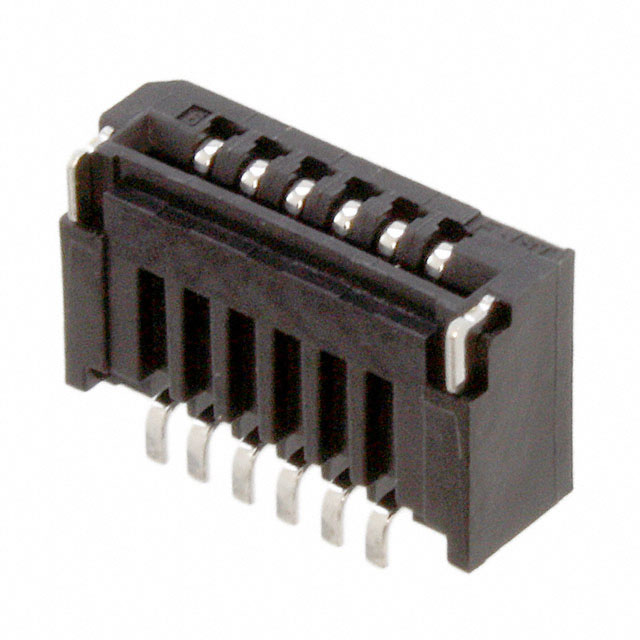

06FMN-SMT-A-TF(LF)(SN)
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 06FMN-SMT-A-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 06FMN-SMT-A-TF(LF)(SN) with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 06FMN-SMT-A-TF(LF)(SN) |
|---|---|
| Manufacturer | JST |
| Description | CONN FFC TOP 6POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | ||
|---|---|---|---|---|---|
| $0.087 | $0.082 | $0.079 | |||
| 10000 pcs | 14000 pcs | 50000 pcs | |||
| $0.073 | $0.072 | $0.071 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 06FMN-SMT-A-TF(LF)(SN) | Manufacturer | JST |
|---|---|---|---|
| Description | CONN FFC TOP 6POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 277090 pcs | Data sheet | FMN Series |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | FMN |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 06FMN-SMT-A-TF(LF)(SN)- 06FMNSMTATFLFSN 455-1923-2 |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 6 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 24 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA6T), Nylon 6T | Housing Color | Black |
| Height Above Board | 0.118" (3.00mm) | Flat Flex Type | FFC |
| Features | Low Insertion Force (LIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 6 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Top |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
