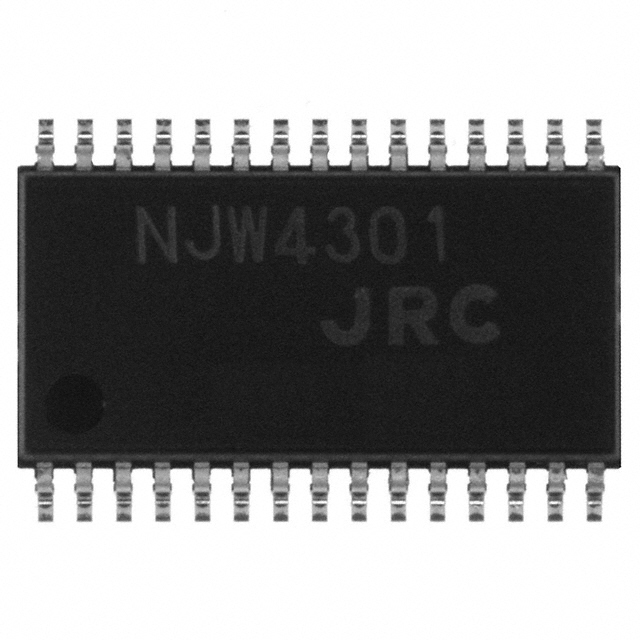

NJW4301M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NJW4301M with confidence from Components-World.HK, 1 Year Warranty
Dowload NJW4301M Details in PDFSee Product Specifications for product details.
Buy NJW4301M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NJW4301M |
|---|---|
| Manufacturer | JRC Corporation / NJRC |
| Description | IC BRIDGE DRIVER 2CH 4V 30-SDMP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | NJW4301M | Manufacturer | JRC Corporation / NJRC |
|---|---|---|---|
| Description | IC BRIDGE DRIVER 2CH 4V 30-SDMP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5179 pcs | Data sheet | NJW4301 |
| Category | Integrated Circuits (ICs) | Voltage - Supply | 4 V ~ 12 V |
| Voltage - Load | 4 V ~ 12 V | Technology | Bi-CMOS |
| Supplier Device Package | 30-SDMP | Series | - |
| Rds On (Typ) | - | Packaging | Tube |
| Package / Case | 30-SDMP | Output Configuration | Half Bridge (4) |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Load Type | Inductive | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Interface | Logic | Features | - |
| Fault Protection | Over Temperature | Detailed Description | Half Bridge (4) Driver DC Motors, General Purpose Bi-CMOS 30-SDMP |
| Current - Peak Output | - | Current - Output / Channel | - |
| Applications | DC Motors, General Purpose |
