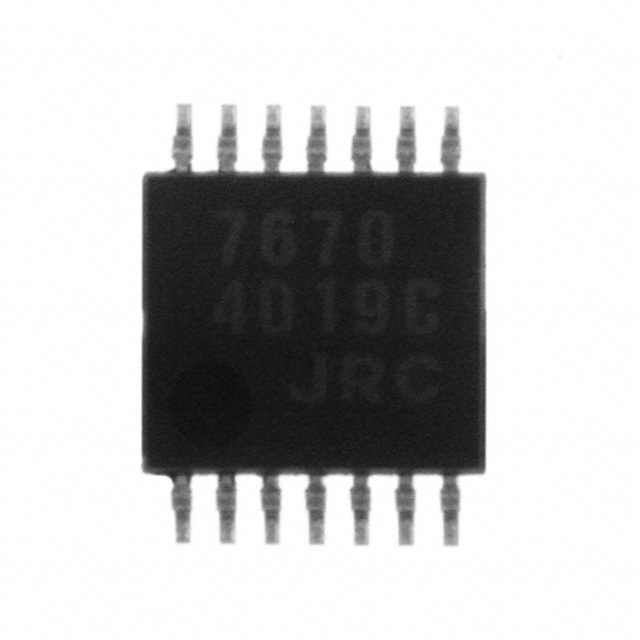

NJU7670V-TE1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NJU7670V-TE1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy NJU7670V-TE1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | NJU7670V-TE1 |
|---|---|
| Manufacturer | JRC Corporation / NJRC |
| Description | IC REG SWITCHD CAP NVIN 14SSOP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.064 | $0.951 | $0.856 | $0.78 | $0.704 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | NJU7670V-TE1 | Manufacturer | JRC Corporation / NJRC |
|---|---|---|---|
| Description | IC REG SWITCHD CAP NVIN 14SSOP | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 52373 pcs | Data sheet | NJU7670 |
| Category | Integrated Circuits (ICs) | Voltage - Output (Min/Fixed) | nVin |
| Voltage - Output (Max) | - | Voltage - Input (Min) | -2.6V |
| Voltage - Input (Max) | -6V | Topology | Charge Pump |
| Synchronous Rectifier | No | Supplier Device Package | 14-SSOP |
| Series | - | Packaging | Original-Reel® |
| Package / Case | 14-LSSOP (0.173", 4.40mm Width) | Output Type | Fixed |
| Output Configuration | Negative | Other Names | NJU7670V-TE1DKR |
| Operating Temperature | -20°C ~ 75°C (TA) | Number of Outputs | 1 |
| Mounting Type | Surface Mount | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Function | Ratiometric | Frequency - Switching | 2.5kHz |
| Detailed Description | Charge Pump Switching Regulator IC Negative Fixed nVin 1 Output 20mA 14-LSSOP (0.173", 4.40mm Width) | Current - Output | 20mA |
