Home > Products > Integrated Circuits (ICs) > PMIC - Motor Drivers, Controllers > NJM3770AD3

NJM3770AD3

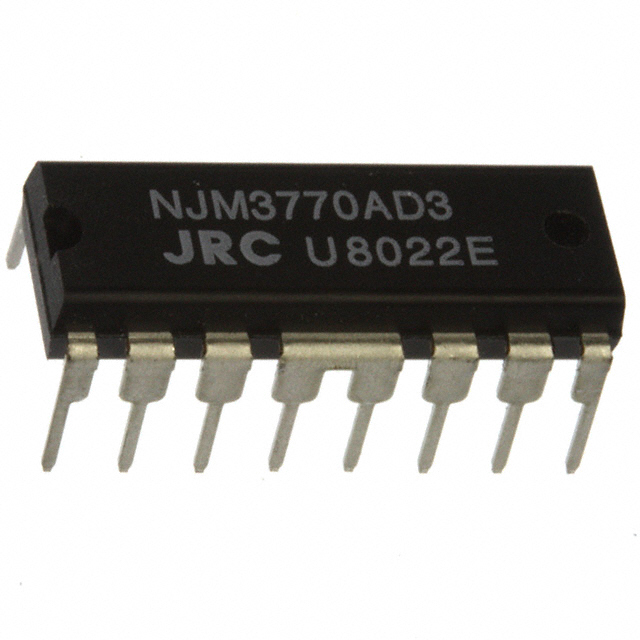

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy NJM3770AD3 with confidence from Components-World.HK, 1 Year Warranty

Dowload NJM3770AD3 Details in PDF

Request a Quote

Part Number	NJM3770AD3
Manufacturer	JRC Corporation / NJRC
Description	IC MOTOR DRIVER PAR 16DIP
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 38651 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	100 pcs
	$2.107	$1.88	$1.692	$1.541
	$1.391	$1.248	$1.053	$1.00

Product parameter
Data sheet

Product parameter

Part Number	NJM3770AD3	Manufacturer	JRC Corporation / NJRC
Description	IC MOTOR DRIVER PAR 16DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38651 pcs	Data sheet	NJM3770A
Category	Integrated Circuits (ICs)	Voltage - Supply	4.75 V ~ 5.25 V
Voltage - Load	10 V ~ 40 V	Technology	Bipolar
Supplier Device Package	16-DIP Batwing	Step Resolution	1, 1/2
Series	-	Packaging	Tube
Package / Case	16-DIP (0.325", 8.25mm), 12 Leads + 2 Fins	Output Configuration	Half Bridge (2)
Other Names	NJM#3770AD3 NJM#3770AD3-ND NJM3770AD3# NJM3770AD3#-ND	Operating Temperature	-20°C ~ 125°C (TJ)
Mounting Type	Through Hole	Motor Type - Stepper	Bipolar
Motor Type - AC, DC	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Interface	Parallel	Function	Driver - Fully Integrated, Control and Power Stage
Detailed Description	Bipolar Motor Driver Bipolar Parallel 16-DIP Batwing	Current - Output	1.5A
Applications	General Purpose
