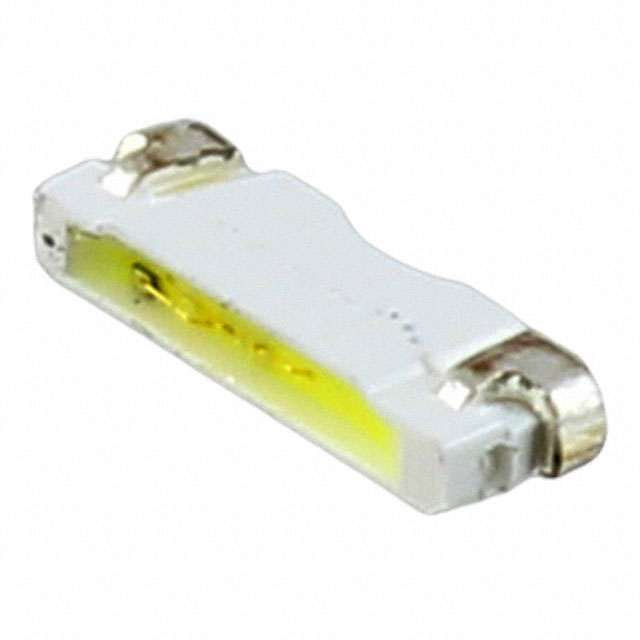

ZSM-S3806-W
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ZSM-S3806-W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ZSM-S3806-W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ZSM-S3806-W |
|---|---|
| Manufacturer | JKL Components Corporation |
| Description | LED WHITE DIFF SIDE LED SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | ZSM-S3806-W | Manufacturer | JKL Components Corporation |
|---|---|---|---|
| Description | LED WHITE DIFF SIDE LED SMD R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5630 pcs | Data sheet | ZSM-T Series GuideZSM-S3806-W Spec |
| Category | Optoelectronics | Wavelength - Peak | - |
| Wavelength - Dominant | - | Voltage - Forward (Vf) (Typ) | 3.2V |
| Viewing Angle | 120° | Supplier Device Package | Side View LED |
| Size / Dimension | 3.80mm L x 1.20mm W | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 2-SMD, Boomerang |
| Other Names | 289-1226-2 ZSM-S3806-W-ND |
Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Millicandela Rating | 1750mcd |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top |
| Lens Color | Yellow | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.60mm | Features | - |
| Detailed Description | White LED Indication - Discrete 3.2V 2-SMD, Boomerang | Current - Test | 20mA |
| Configuration | Standard | Color | White |
