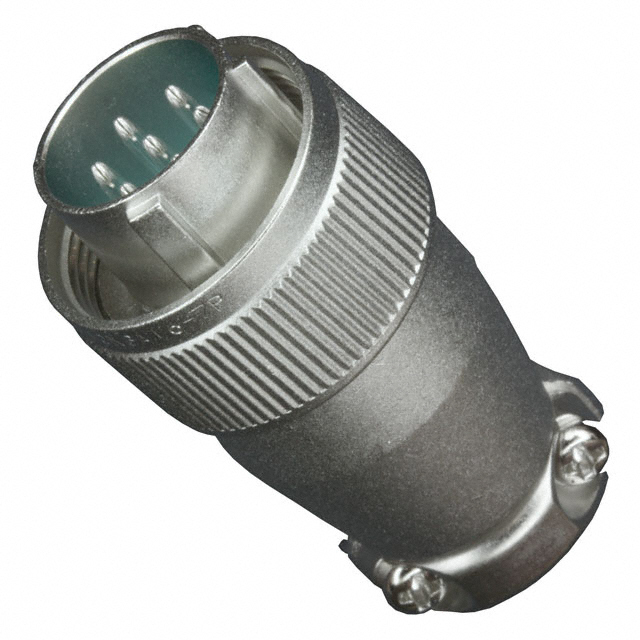

SRCN6A16-7P
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRCN6A16-7P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRCN6A16-7P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRCN6A16-7P |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN PLUG MALE 7POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.68 | $3.521 | $3.201 | $3.041 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.961 | $2.641 | $2.481 | $2.193 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRCN6A16-7P | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN PLUG MALE 7POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17838 pcs | Data sheet | Circular ConnectorsSRCN Series ConnectorsSRCN6Ayy-yyx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 16-7 |
| Shell Material | Aluminum Alloy | Shell Finish | Nickel |
| Series | SRCN | Packaging | Bulk |
| Other Names | 670-1147 SRCN6A167P |
Orientation | N (Normal) |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 7 |
| Mounting Type | Free Hanging (In-Line) | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Plastic | Ingress Protection | - |
| Features | Backshell, Cable Clamp, Coupling Nut | Fastening Type | Threaded |
| Detailed Description | 7 Position Circular Connector Plug, Male Pins Solder Cup Silver | Current Rating | 10A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Plug, Male Pins |
| Color | Silver | Cable Opening | 0.453" (11.51mm) |
| Backshell Material, Plating | Aluminum Alloy, Nickel | Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
