SRCN2A25-24P

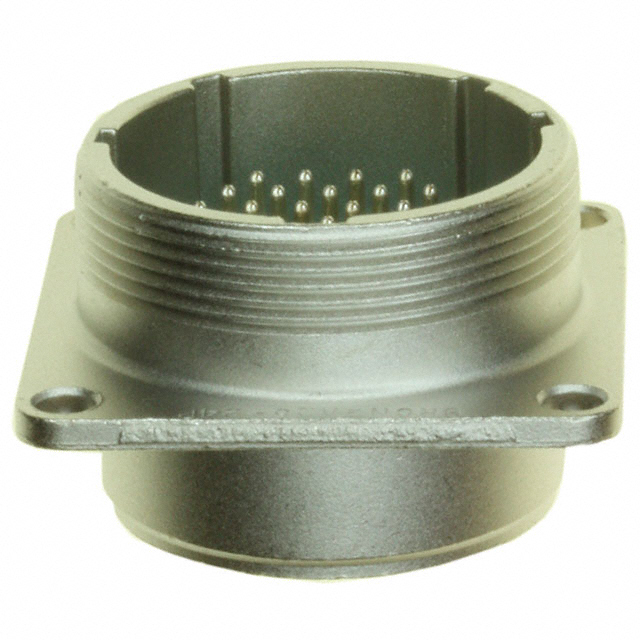

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRCN2A25-24P with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRCN2A25-24P with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRCN2A25-24P |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT MALE 24POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $3.195 | $3.054 | $2.777 | $2.638 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $2.569 | $2.291 | $2.152 | $1.902 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRCN2A25-24P | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT MALE 24POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17284 pcs | Data sheet | Circular ConnectorsSRCN Series ConnectorsSRCN2Ayy-yyx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 25-24 |
| Shell Material | Aluminum Alloy | Shell Finish | Nickel |
| Series | SRCN | Packaging | Bulk |
| Other Names | 670-1139 SRCN2A2524P |
Orientation | N (Normal) |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 24 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Plastic | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 24 Position Circular Connector Receptacle, Male Pins Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Male Pins |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
