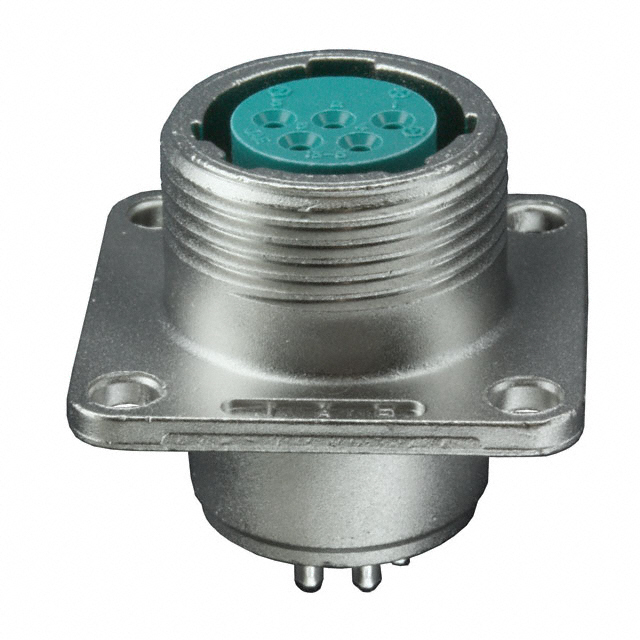

SRCN2A13-5S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SRCN2A13-5S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SRCN2A13-5S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SRCN2A13-5S |
|---|---|
| Manufacturer | JAE Electronics, Inc. |
| Description | CONN RCPT FMALE 5POS SOLDER CUP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.693 | $1.626 | $1.49 | $1.423 | $1.355 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.185 | $1.152 | $0.982 | $0.914 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SRCN2A13-5S | Manufacturer | JAE Electronics, Inc. |
|---|---|---|---|
| Description | CONN RCPT FMALE 5POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33424 pcs | Data sheet | Circular ConnectorsSRCN Series ConnectorsSRCN2Ayy-yyx Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC, 350VDC |
| Termination | Solder Cup | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 13-5 |
| Shell Material | Aluminum Alloy | Shell Finish | Nickel |
| Series | SRCN | Packaging | Bulk |
| Other Names | 670-1129 SRCN2A135S |
Orientation | N (Normal) |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 5 |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | Plastic | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 5 Position Circular Connector Receptacle, Female Sockets Solder Cup Silver | Current Rating | 5A |
| Contact Material | Copper Alloy | Contact Finish Thickness - Mating | - |
| Contact Finish - Mating | Silver | Connector Type | Receptacle, Female Sockets |
| Color | Silver | Cable Opening | - |
| Backshell Material, Plating | - | Applications | Communication Systems, Telecommunications, Test Equipment & Measurement |
